Wavecom TNT + M (with Battery)

Free PAT Delivery
Dispatched Same Day
100% Money Back Guarantee
Wavecom's high end TNT + M Appliance Tester features a downloadable memory and can store an enormous 5000 items.
$995.00 Excl. GST
Quantity:
1300 656 938
If you have any questions about this product, call our customer service or send us an e-mail.
Product Description

Please note, this unit has now been discontinued and will be replaced by the Wavecom TNT Titan.

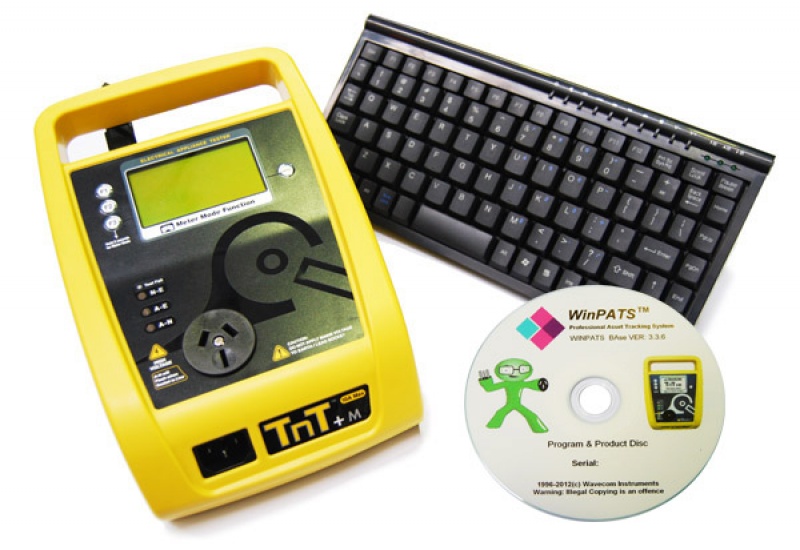

Wavecom G4 TNT + M

The Wavecom TNT+M is one of Wavecom's high end testers that has downloadable memory and data entry.

This newer model has the added capability of battery power, making testing on the road an easier process.

An added benefit of the + M series is its storage capacity of 5000 items, with 8 tests per record (40,000 total tests). Each item includes site location, description, make, model, serial no, asset no, test frequency, test type, comments and number of tests.

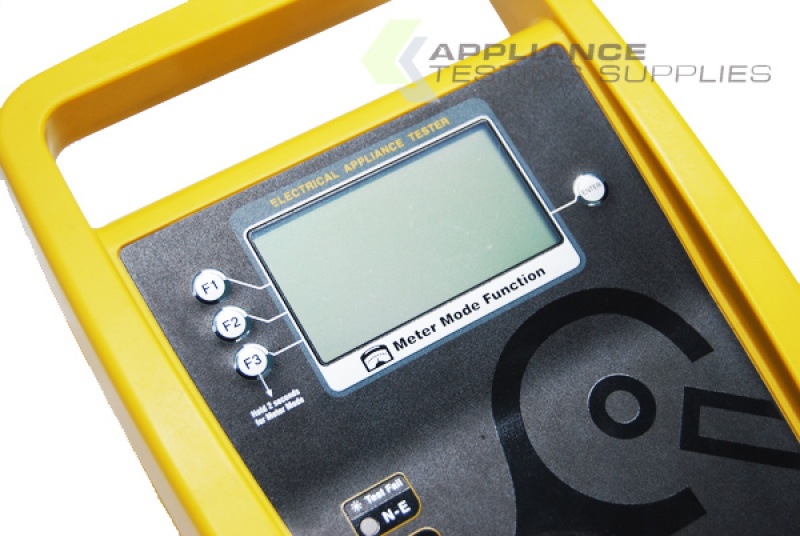

Similar to the other Gen 4 models, It includes Wavecom's new Meter Mode function which display's volts, amps, true power and reactive power of an individual appliance.

Features

  • Tests fixed and portable RCD's
  • Battery powered
  • Memory storage of 5000 items
  • Compatible with Wavecom Barcode scanner & Thermal Transfer printer
  • Unit displays actual test readings
  • PASS/FAIL indicator
  • One button testing
  • Meter Mode function
  • Impact resistant and flame retardant casing
  • Built-in carry handle
  • Processor firmware factory updateable

Warranty: 2 Years

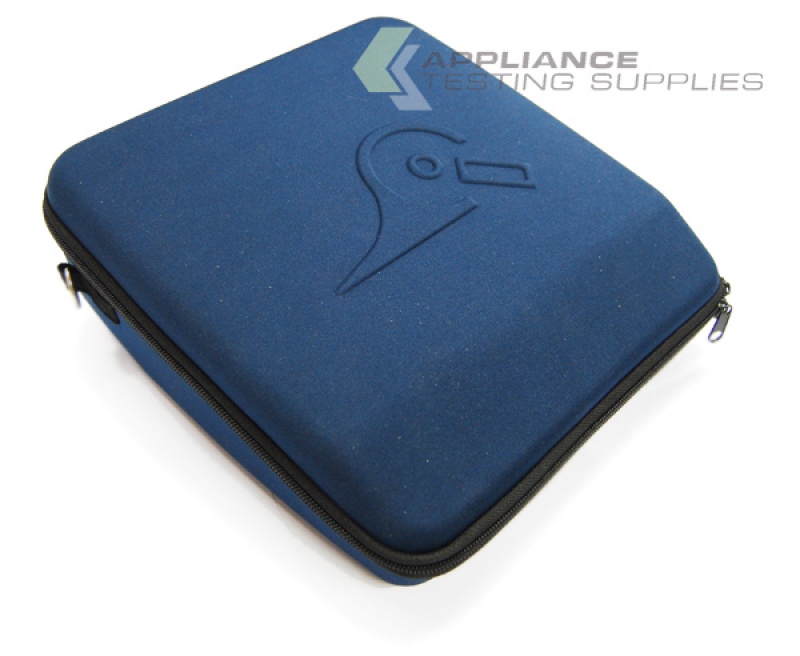

Unit Supplied with: Carry Case, 240V Extension Lead Adaptor, Earth Bond Lead, Calibration Certificate, Manual, WINPATs Base Software & Keyboard

*Software is not compatible with MAC (PC only)

Specifications
  • 2 Years
  • Voltage: 200 To 265VAC
    Load Current: 0.0 To 10Amp
    Apparent Power: 0 to 2400VA
    Power: 0 to 2400W
  • Voltage: 200 To 265VAC
    Load Current: 0.0 To 10Amp
  • Class 1 Pass ≤ 5 MA RMS
    Class 2 Pass ≤ 1 MA RMS
  • Settable Trip, 2 - 500 mA ± <2.5% of valve
    Trip Time, 0 - 300 mS ± <1 mS
  • Current 200mA DC
    Pass Limit < 1.0Ω
  • Circuit continuity test 240VAC @ 2mA
  • 500v, 250V Selectable
  • Load current max, 10A
  • Case: Impact Resistant, Flame Retartant
    Size: 170W x 225 x 110H
  • 230 VAC - 260 VAC. 3W. 50hZ
  • 1.3kg
  • CAT III 300V
    Internal Fuse Protected 1A
    DUT Test Protected At 10A
