DeltaPAT 3309 Tradie Kit

DeltaPAT 3309 Tradie Kit

Metrel

In stock

IN STOCK

The DeltaPAT 3309 BT Tradie Kit gives you everything you need to start testing and tagging straight away.

It combines the trusted DeltaPAT 3309 portable appliance tester with a rugged hard-bodied transit case, heavy-duty test tags, a logbook, and all the essentials for onsite compliance - no extras required.

Regular price $2,105.00
Regular price Sale price $2,105.00
(incl. GST)
% OFF Sold out
FREE Australia-wide DeliveryFREE Express Shipping Money-Back Guarantee14-day Returns
Same Day DispatchSame Day Dispatch Lifetime Technical SupportLifetime Support
Have a question?Have a question? Call 1300 656 938 or email us

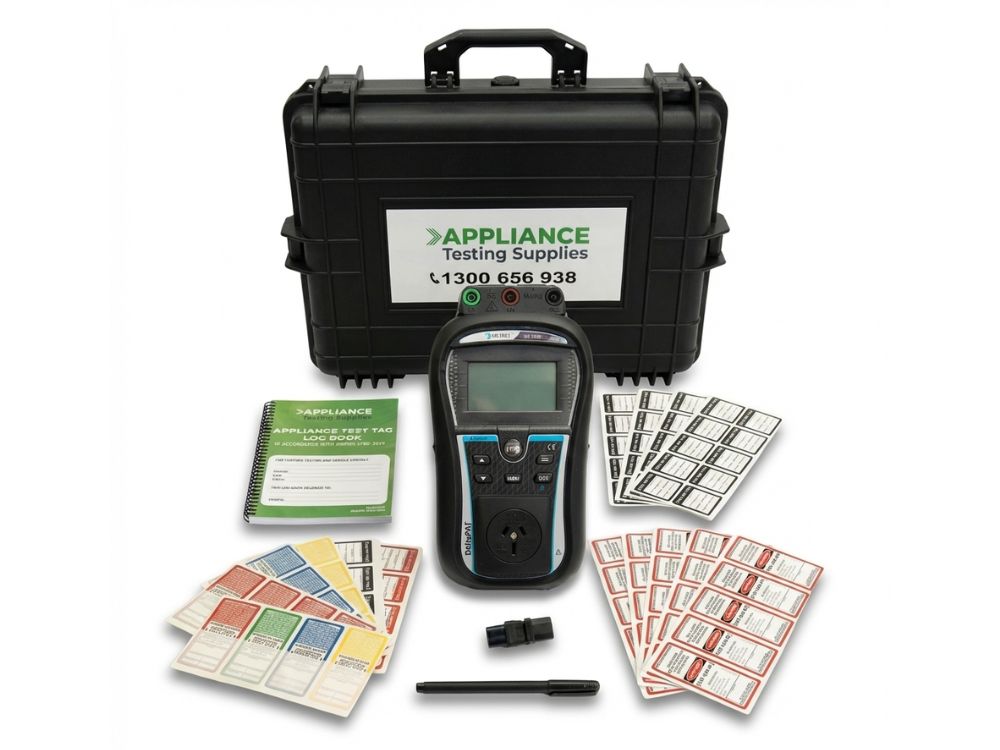

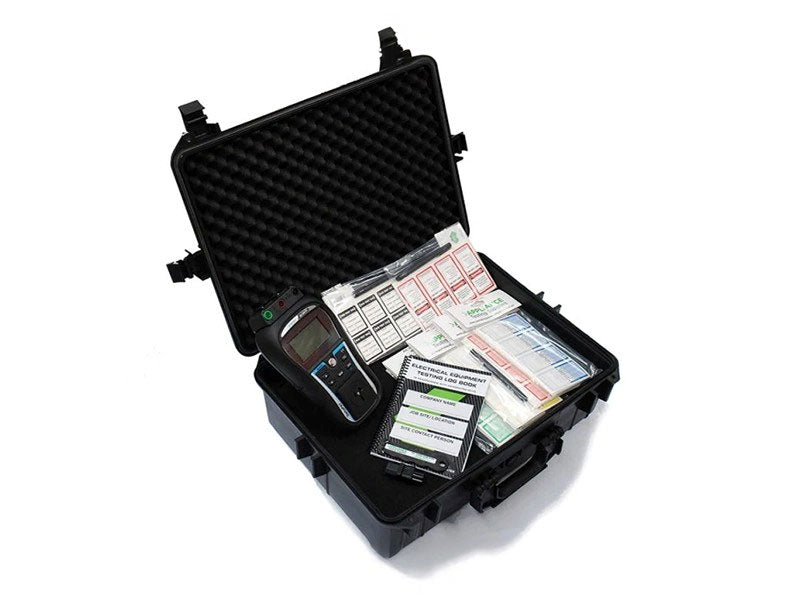

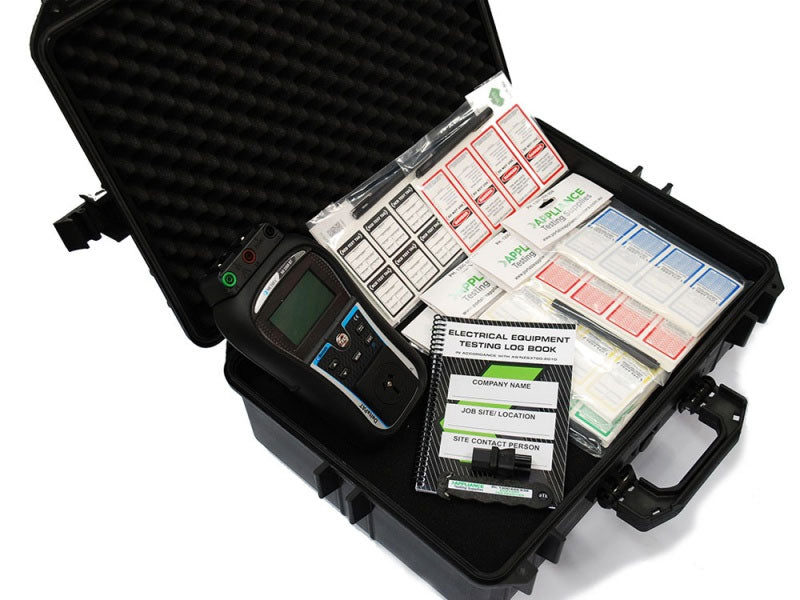

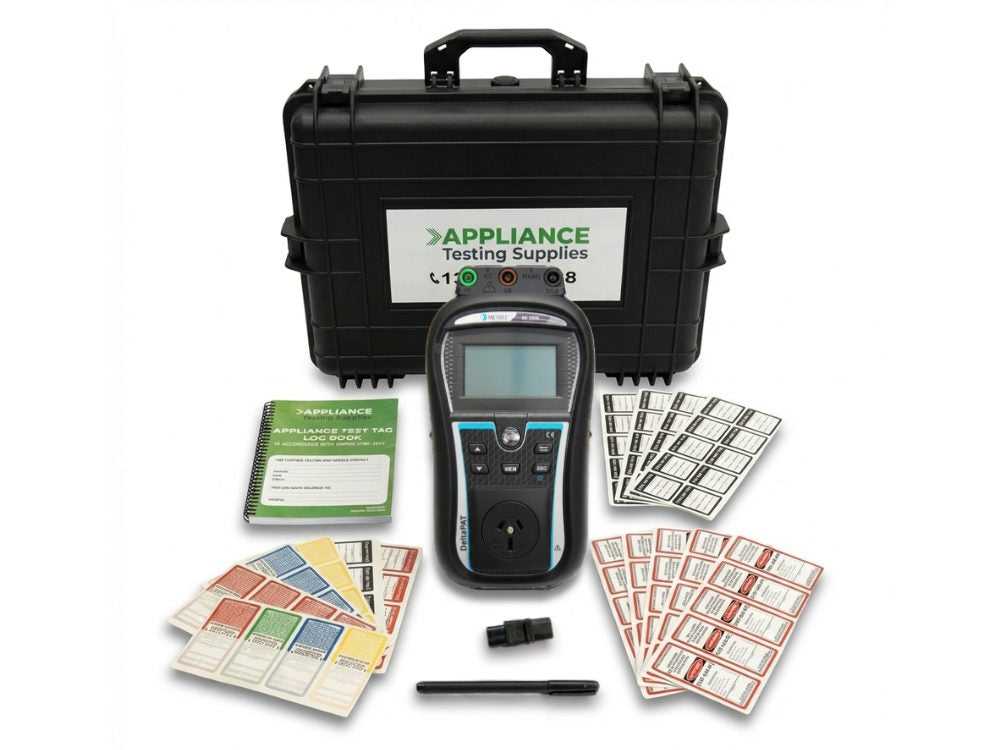

What's Included

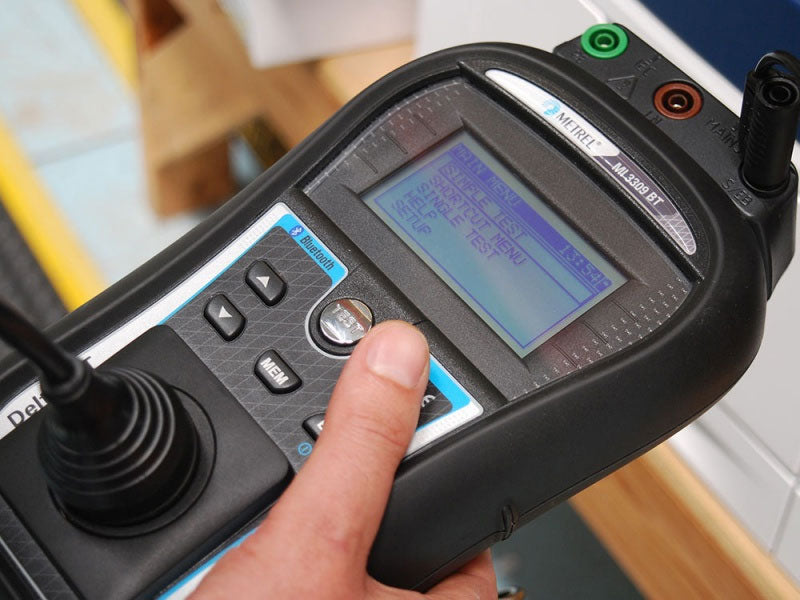

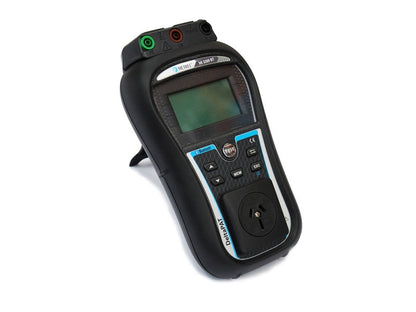

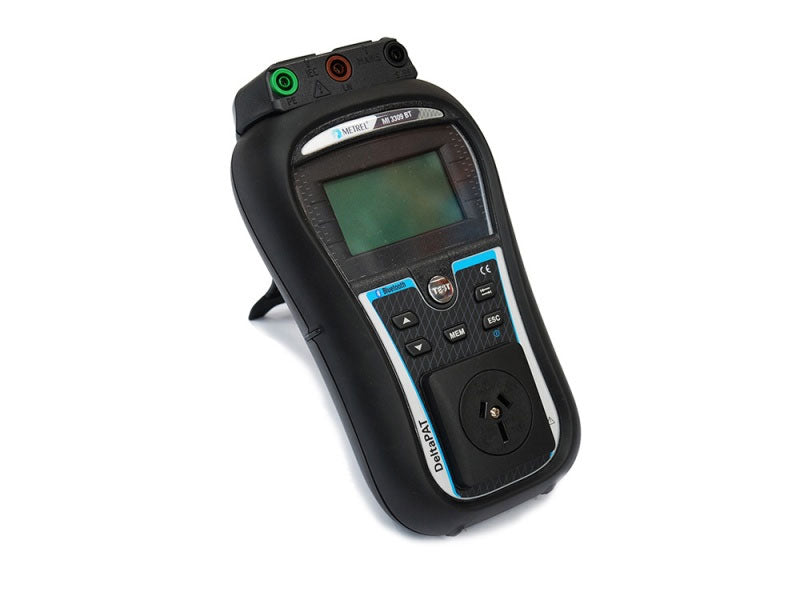

  • Metrel DeltaPAT MI 3309 BT

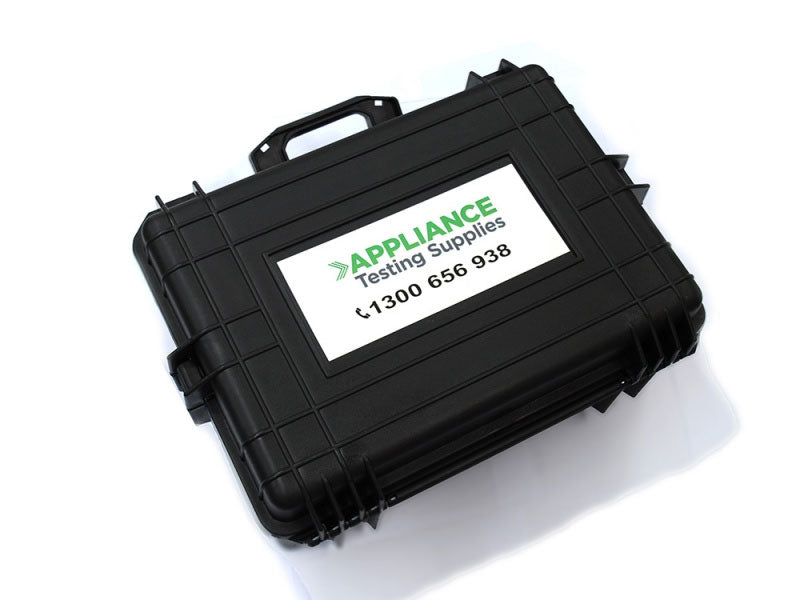

  • Heavy Duty Transit Case

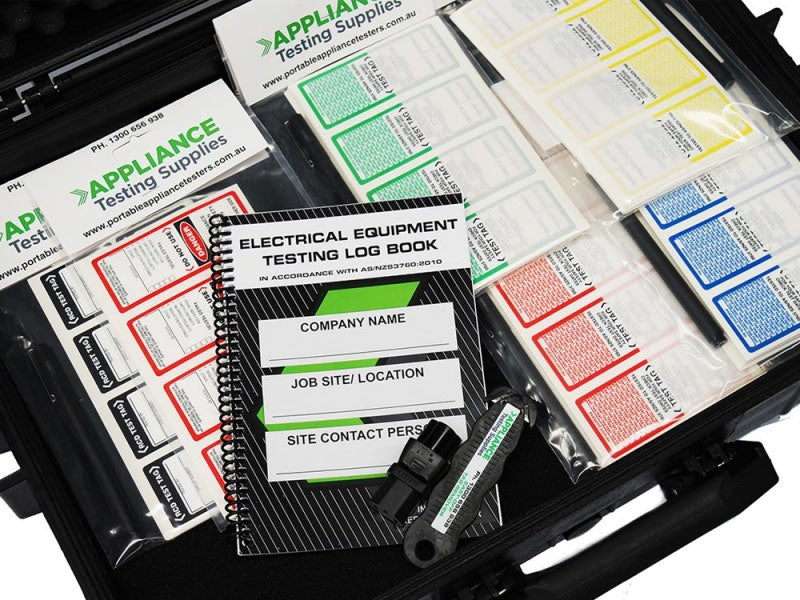

  • Electrical Equipment Logbook
  • 400 x Heavy Duty Self-Laminating Test Tags
  • 50 x Failed Tags
  • 100 x RCD Tags
  • IEC Clover Adaptor
  • EasyOff Tag Remover
  • Permanent Marker Pen

Also includes: Soft Metrel Carry Case (padded), 240V Extension Lead Adaptor, Mains Lead, Test Lead, Probe and Earth Clip, USB and RS232 Cable, Batteries, Metrel ES Manager Software (Digital Download), User Manual and Calibration Certificate.

Key Features

  • Battery or Mains Powered: Test onsite or at a bench without restrictions
  • Tests Portable and Fixed RCDs: Built-in RCD testing without the need for an isolation transformer
  • Large LCD Display: Clear pass/fail lights and easy-to-read results
  • Internal Memory: Stores up to 1500 test results for reporting and compliance
  • Bluetooth Ready: Connects to Android apps or a label printer (optional) via Bluetooth
  • USB & RS232 Export: Download stored test results to a PC
  • Printer Compatible: Works with the Godex Bluetooth printer for tag printing (optional upgrade)

DeltaPAT 3309 BT Specifications

Warranty: 2 Years
Dimensions: 14cm x 8cm x 23cm
Weight: 1.2kg
Operation: 10 h
Power Measurement: Voltage: 230 V AC
Range: 0.00 kVA ÷ 4.00 kVA
RCD Testing: 10mA, 15mA, 30mA
Touch Leakage Current: Voltage: 230 V AC
Range: 0.00 mA ÷ 7.0 mA
Diff. Leakage Current: Voltage: 230 V AC
Range: 0.00 mA ÷ 7.0 mA
Insulation Resistance: Voltage: 250 VDC or 500 VDC
Range: 0.00-199.9 MΩ
Earth Continuity: 200 mA in to 2.00 Ω
Range: 0.00-1999 Ω
Polarity Test: <50 V AC
Voltage TRMS Range: 80 ÷ 300 V
Overvoltage Category: CAT II / 300 V
Protection Degree: case IP 40/connectors IP 20
