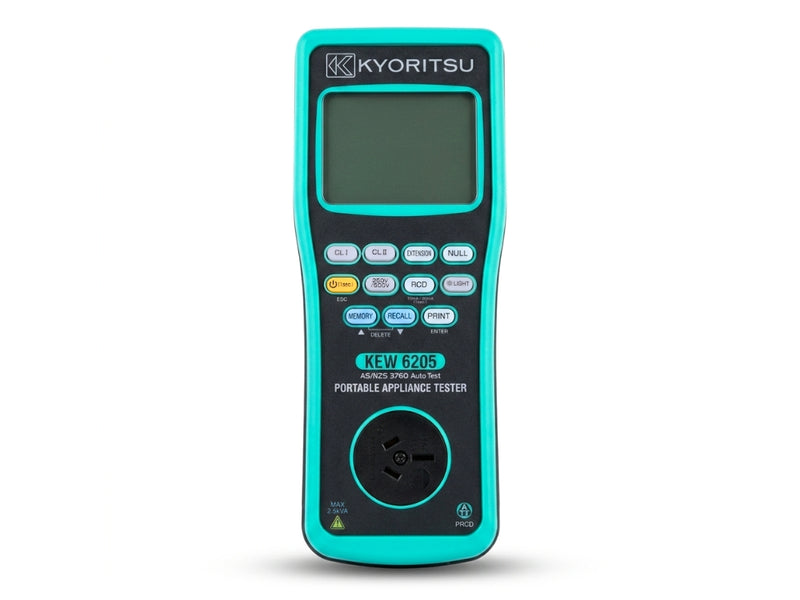

Kyoritsu 6205

Kyoritsu 6205

Kyoritsu | SKU: KYO6205
In stock

IN STOCK

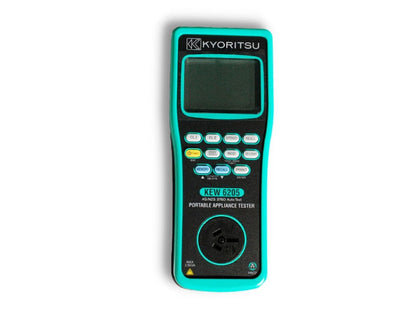

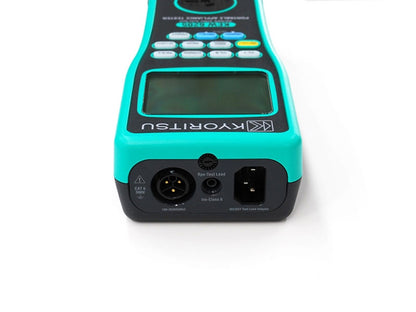

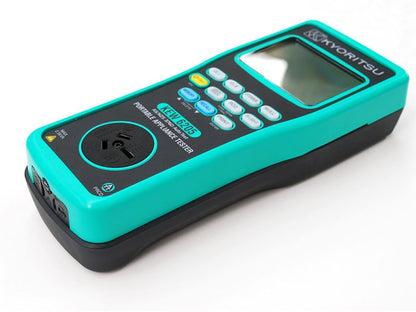

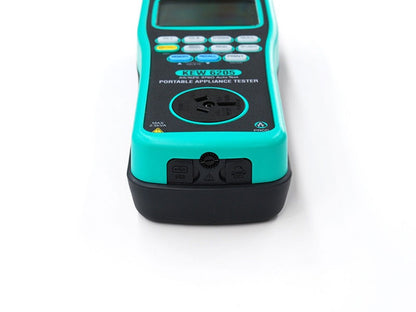

The Kyoritsu 6205 is a portable, full-featured PAT tester that combines battery operation, memory storage, and PC software as standard – rare in its price range.

It performs all tests required under AS/NZS 3760 (including portable and fixed RCDs) and facilitates fast and seamless data transfer to a PC.

Easy to use yet powerful, the 6205 offers excellent value for testers who want to step beyond entry-level models, with the flexibility to add a printer for on-the-spot tags.

$1,342.00
$1,342.00
(incl. GST)
% OFF Contact Us to Order
Taxes included.
FREE Australia-wide DeliveryFREE Express Shipping Money-Back Guarantee30-day Returns
Same Day DispatchSame Day Dispatch Lifetime Technical SupportLifetime Support
Have a question?Have a question? Call 1300 656 938 or email us

What's Included

  • Kyoritsu 6205 PAT Tester
  • Test Leads
  • PC Software

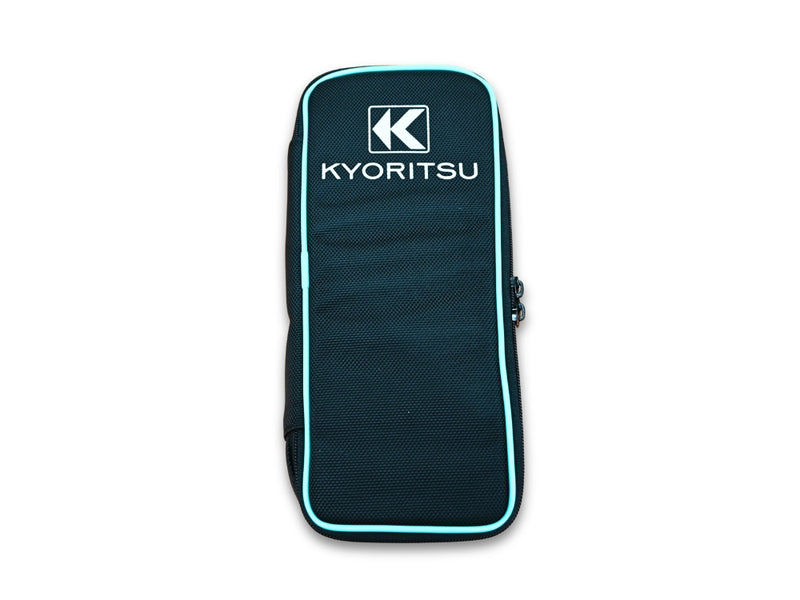

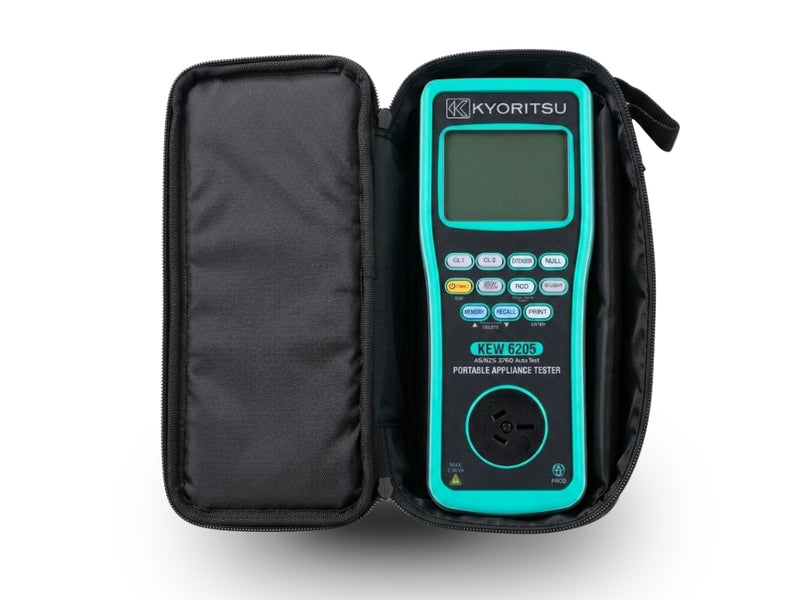

  • Carry Case
  • Batteries
  • User Manual
  • Calibration Certificate

Key Features

  • Battery or Mains Powered - work anywhere, no power required
  • Memory Storage - stores 999 test results onboard
  • RCD Testing - suitable for both portable and fixed devices
  • PC Software Included - export results and generate reports easily
  • Tests to AS/NZS 3760 Standard - fully compliant

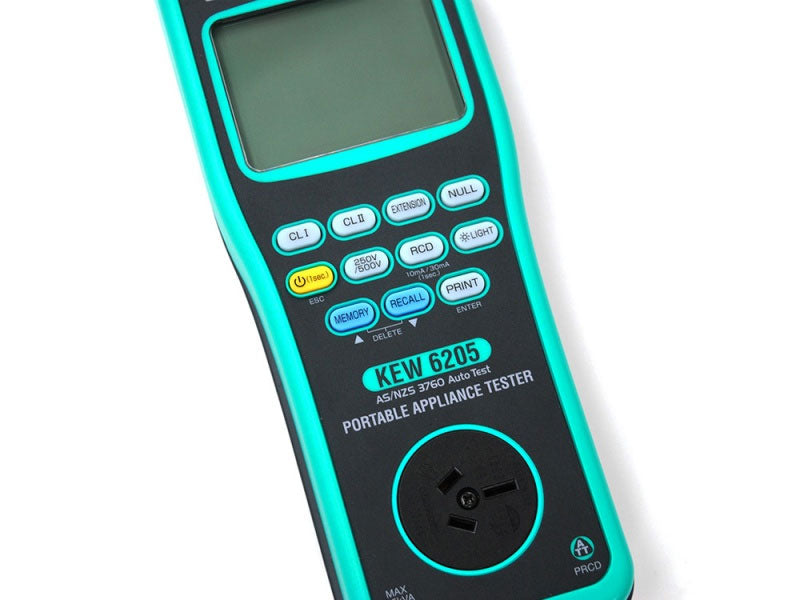

  • Easy Navigation- LCD display with simplified interface

Specifications

Earth Continuity: Yes (200mA)
Insulation Resistance: Yes (250V/500V)
Current Leakage: Yes
Max current lkg: 10A
Outlet Socket: 15A
Polarity: Yes
Portable RCD Testing: Yes
Fixed RCD Testing (CATII*): Yes
Values Display: Yes
Battery Type: Alkaline
Rechargeable from mains: No
Programmable Sequences: No
Recording Capabilities: Yes
Records descriptions: No
Data entry: No
Recall by ID#: No
Printer Option: None
3 Phase Leakage Testing: No
Weight: 0.93 kg
View full details
Kyoritsu 6205

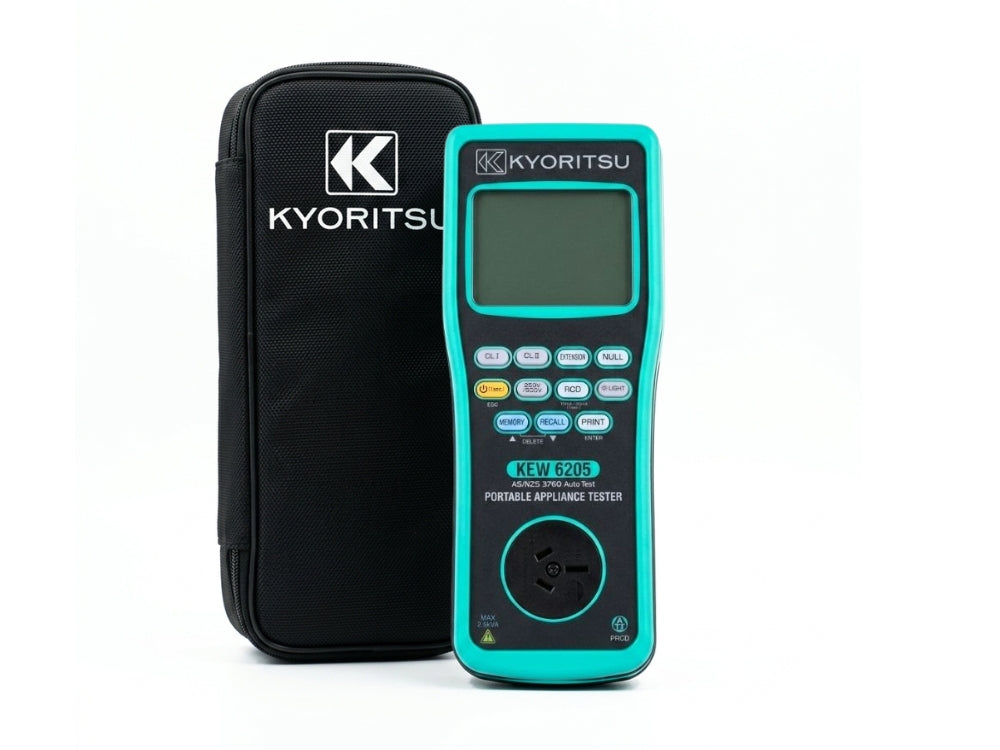

Product Image
$1,342.00
$1,342.00
(incl. GST)
Product Image
Kyoritsu 6205
$1,342.00
$1,342.00
(incl. GST)
Trustpilot

Frequently Asked Questions

Is the Kyoritsu 6205 compliant with AS/NZS 3760?

Yes. The 6205 performs all tests required under AS/NZS 3760, including insulation resistance, earth continuity, polarity, and both portable and fixed RCD testing.

Does the 6205 store test results?

Yes. The unit features internal memory for storing test results, which can then be downloaded to a PC for easier record-keeping and reporting.

How is data transferred from the 6205 to a computer?

The tester connects to your PC using the supplied software, allowing you to download, view, and manage test records without manual entry, which makes compliance tracking much faster and more accurate.

Can the 6205 be used in the field?

Yes. It operates on both battery and mains power, giving you flexibility to test on-site or in the workshop without relying on a fixed power source.

Is there a printer available for the 6205?

Yes. While the tester does not include a printer by default, you have the option to add a compatible printer for on-the-spot tag printing if required.
