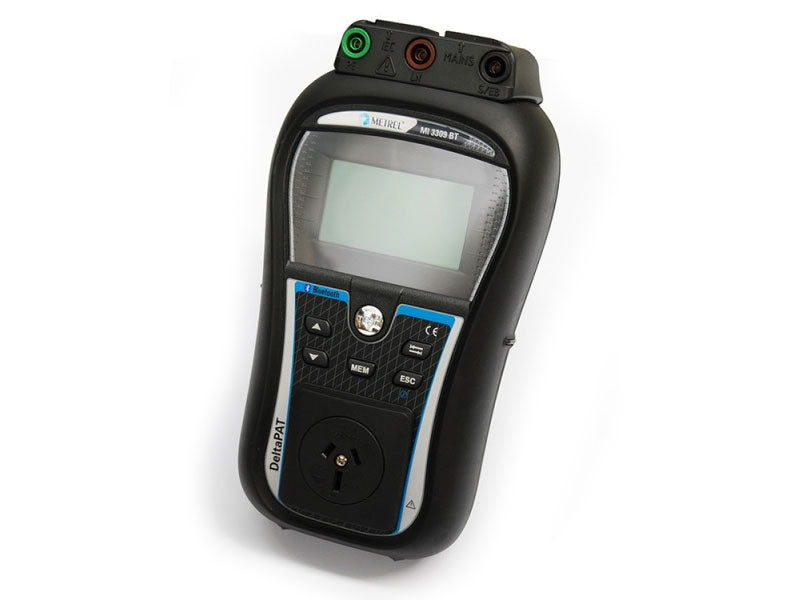

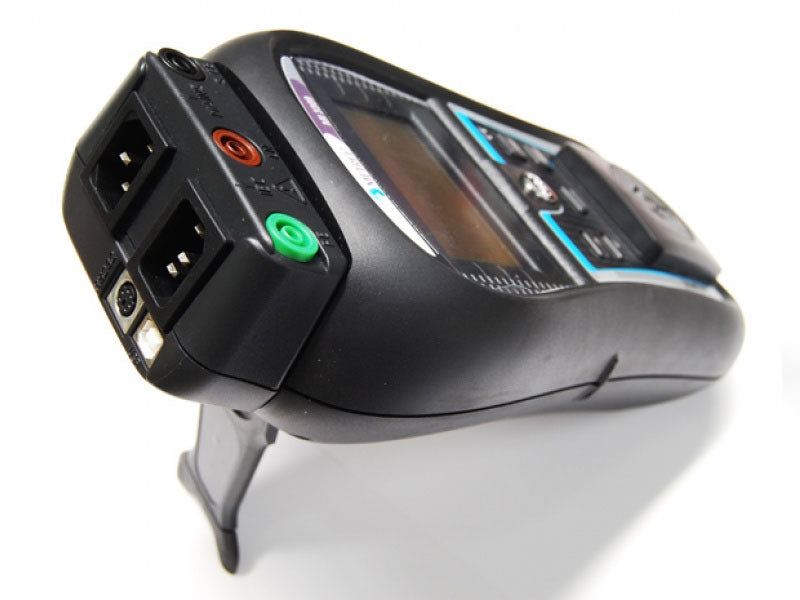

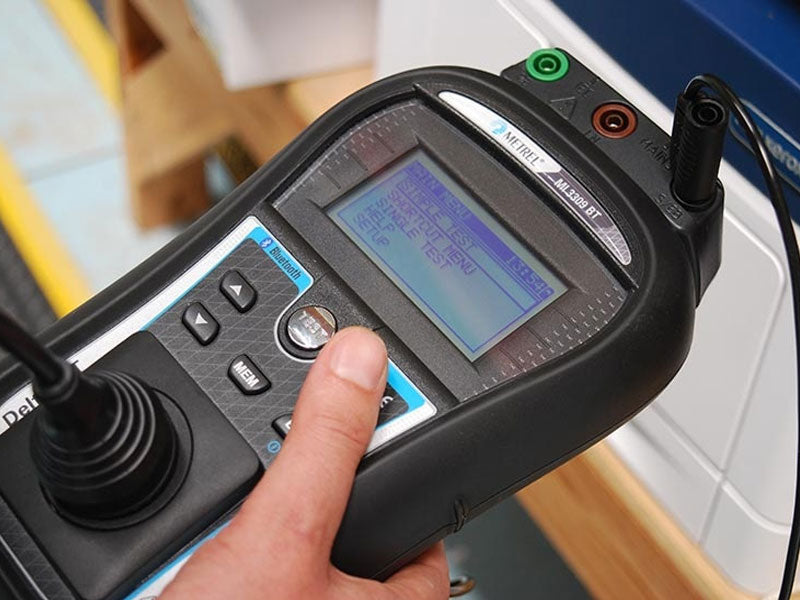

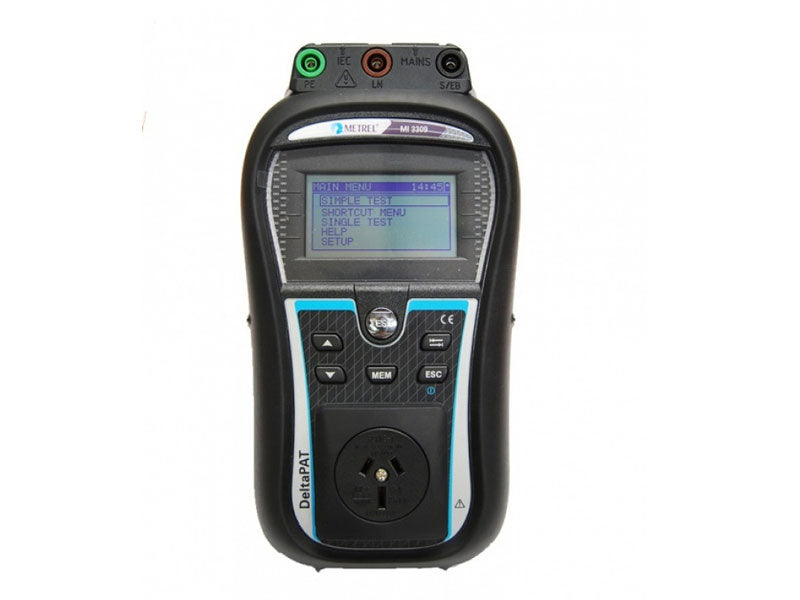

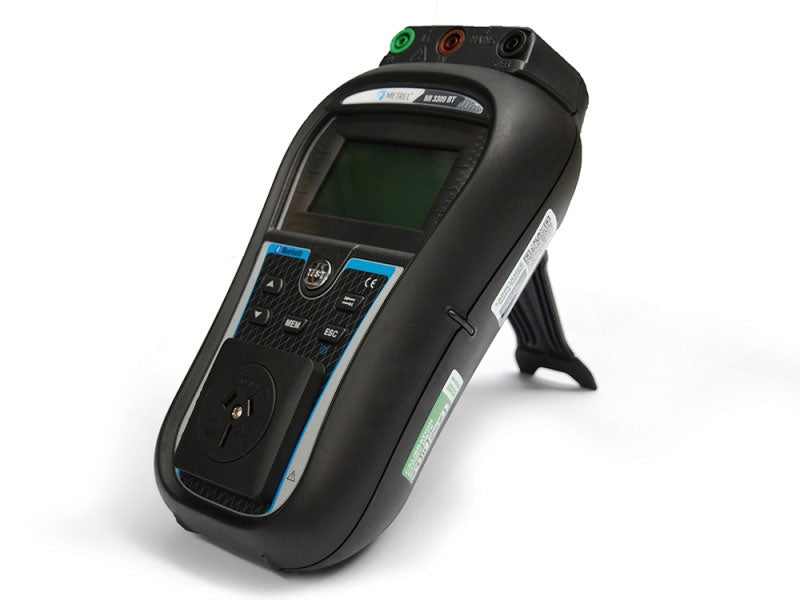

Metrel DeltaPAT 3309 BT

Metrel DeltaPAT 3309 BT

METREL | SKU: SPDELTA&BAG
Low stock

LOW STOCK

Metrel DeltaPAT 3309 BT is one of Australia's most trusted and best-selling PAT testers, combining simplicity, flexibility, and full testing capability. With both battery and mains power, it suits almost every work environment.

You can test both - portable and fixed RCDs straight out of the box and don't need an external isolation transformer. Its internal memory, Bluetooth connectivity, and lightweight design make DeltaPAT 3309 BT a highly popular portable appliance tester.

$1,879.00
$1,978.90 $1,879.00
(incl. GST)
5% OFF Sold out
FREE Australia-wide DeliveryFREE Express Shipping Money-Back Guarantee14-day Returns
Same Day DispatchSame Day Dispatch Lifetime Technical SupportLifetime Support
Have a question?Have a question? Call 1300 656 938 or email us

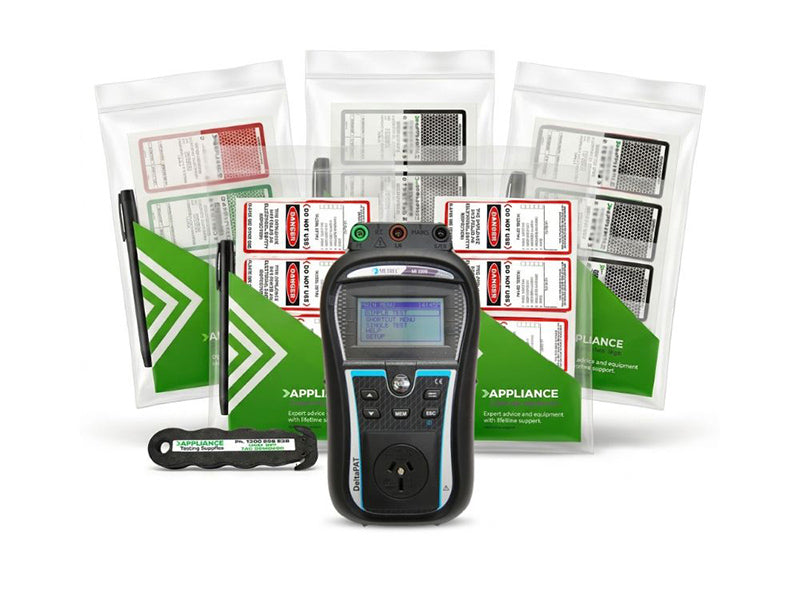

What's Included

  • Metrel DeltaPAT 3309 BT Tester

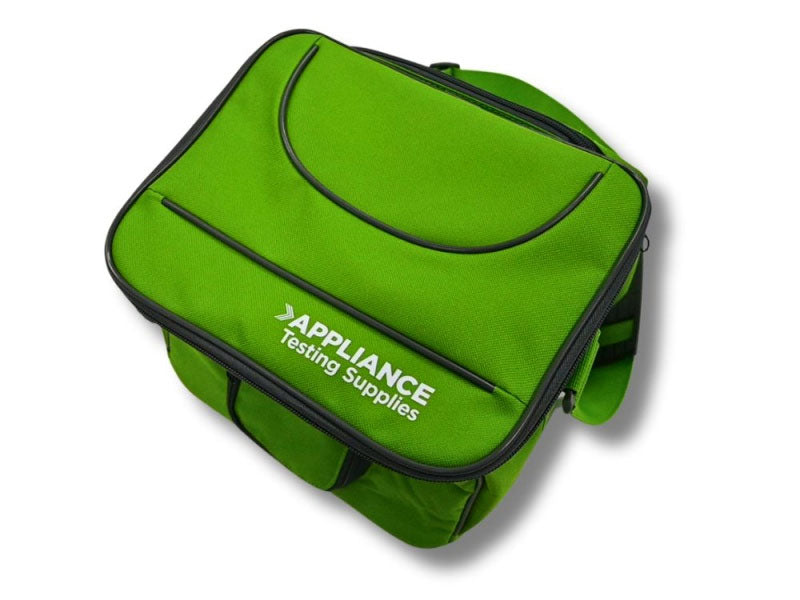

  • Soft Metrel Carry Case
  • 240V Extension Lead Adaptor
  • Mains & Test Leads
  • Probe & Clip
  • Batteries
  • USB & RS232 Cable
  • Metrel ES Manager Software (PC)

Also includes: User manual, Calibration certificate

Key Features

  • Battery or Mains Powered – whether on-site testing or a bench
  • Tests Portable & Fixed RCDs – no isolation transformer needed
  • Large LCD Display – with clear pass/fail indicator lights
  • Internal Memory – stores up to 1500 test results
  • Bluetooth Ready – connect to compatible Android apps and printers
  • USB & RS232 Export – transfer data to your PC for test report generation
  • Includes Metrel ES Manager Software – PC version supplied as digital download
  • Printer Compatible – works with the Godex Bluetooth Printer
  • Metrel Soft Carry Case - padded protection for your PAT Tester

Specifications

Warranty: 2 Years
Dimensions: 14cm x 8cm x 23cm
Weight: 1.2kg
Operation: 10 h
Power Measurement: Voltage: 230 V AC
Range: 0.00 kVA ÷ 4.00 kVA
RCD Testing: 10mA, 15mA, 30mA
Touch Leakage Current: Voltage: 230 V AC
Range: 0.00 mA ÷ 7.0 mA
Diff. Leakage Current: Voltage: 230 V AC
Range: 0.00 mA ÷ 7.0 mA
Insulation Resistance: Voltage: 250 VDC or 500 VDC
Range: 0.00-199.9 MΩ
Earth Continuity: 200 mA in to 2.00 Ω
Range: 0.00-1999 Ω
Polarity Test: <50 V AC
Voltage TRMS Range: 80 ÷ 300 V
Overvoltage Category: CAT II / 300 V
Protection Degree: case IP 40/connectors IP 20
View full details
Metrel DeltaPAT 3309 BT
Product Image
$1,879.00
$1,978.90 $1,879.00
(incl. GST)
Product Image
Metrel DeltaPAT 3309 BT
$1,879.00
$1,978.90 $1,879.00
(incl. GST)

Frequently Asked Questions

What tests can the Metrel DeltaPAT 3309 BT perform?

The DeltaPAT 3309 BT is a multifunctional appliance tester capable of conducting a comprehensive range of safety tests, including:

  • Visual inspection
  • Earth continuity resistance
  • Insulation resistance (250V and 500V)
  • Substitute leakage current
  • Differential and touch leakage current
  • IEC cord polarity test
  • RCD and PRCD testing (including PRCD-K and PRCD-S)
  • Power measurement
  • TRMS voltage measurement
  • Functional test

These capabilities ensure compliance with AS/NZS 3760 standards for electrical appliance safety testing.

Is the tester battery-powered or mains-powered?

The DeltaPAT 3309 BT operates on both battery and mains power.

It uses six AA NiMH or NiCd rechargeable batteries, providing approximately 8 hours of operation. This dual power option offers flexibility for both on-site and stationary testing scenarios.

Can this tester perform RCD testing without an isolation transformer?

Yes, the DeltaPAT 3309 BT features unique RCD testing technology that eliminates the need for an isolation transformer when testing portable RCDs. This simplifies the testing process and enhances safety.

Is the tester compatible with printers or barcode scanners?

The DeltaPAT 3309 BT includes USB and RS232 communication ports, allowing connection to compatible printers and barcode scanners.

Additionally, with an optional Bluetooth dongle, it can interface with Android devices for enhanced data management.

How many test results can be stored in the device?

The tester has an internal memory capable of storing approximately 1,500 test results.

These results can be exported to a PC using the included PATLink PRO software for reporting and record-keeping.

Does the tester come with a calibration certificate?

Yes, each DeltaPAT 3309 BT unit is supplied with a valid calibration certificate, ensuring accuracy and compliance from the outset.

What is the recommended calibration interval?

To maintain measurement accuracy and compliance with standards, it is recommended to calibrate the tester annually. Calibration services are available to facilitate this.

Is the tester suitable for testing 3-phase appliances?

The DeltaPAT 3309 BT is primarily designed for single-phase appliance testing. For 3-phase equipment, additional accessories or alternative models may be required.

Please contact us for further information.
