Seaward PowerTest 200

Seaward PowerTest 200

Seaward | SKU: SWDPTEST200

Supports RCD, Loop & Installation Testing

In stock

IN STOCK

The Seaward PowerTest 200 is a powerful and easy-to-use multifunction tester designed to meet the needs of both seasoned electricians and those new to installation testing.

$1,079.00
$1,099.00 $1,079.00
(incl. GST)
2% OFF Contact Us to Order
Taxes included.
Free Australia-wide DeliveryFREE Express Shipping Money-Back Guarantee14-day Returns
Same Day DispatchSame Day Dispatch Lifetime Technical SupportLifetime Support
Have a question?Have a question? Call 1300 656 938 or email us

About Seaward PowerTest 200

Engineered with safety, reliability, and user experience in mind, this tester is an excellent all-rounder for professionals who need a comprehensive tool without the premium price tag.

With features like "no-trip" loop impedance testing, auto RCD testing, and a remote test probe, the PowerTest 200 helps streamline your testing workflow while ensuring accurate results. Its intuitive interface and robust safety protections make it especially useful in busy environments where efficiency and error prevention are key.

Built to comply with AS/NZS3017, the PowerTest 200 is also protected against miswiring and incorrect test selections, giving you peace of mind on-site. Whether you're working on residential installations or switchboard testing, this multifunction tester delivers high-end performance at a great value.

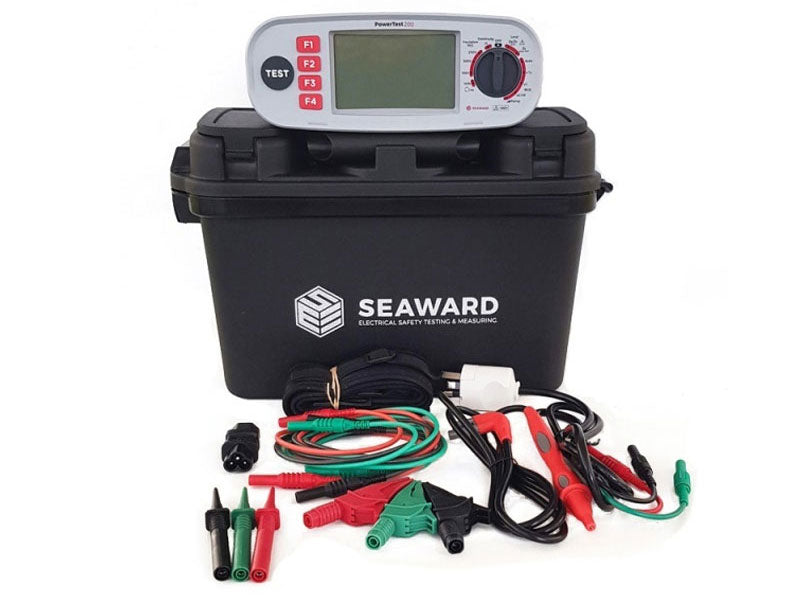

What's Included

The PowerTest 200 is supplied with the following accessories as standard:

  • Padded neck strap

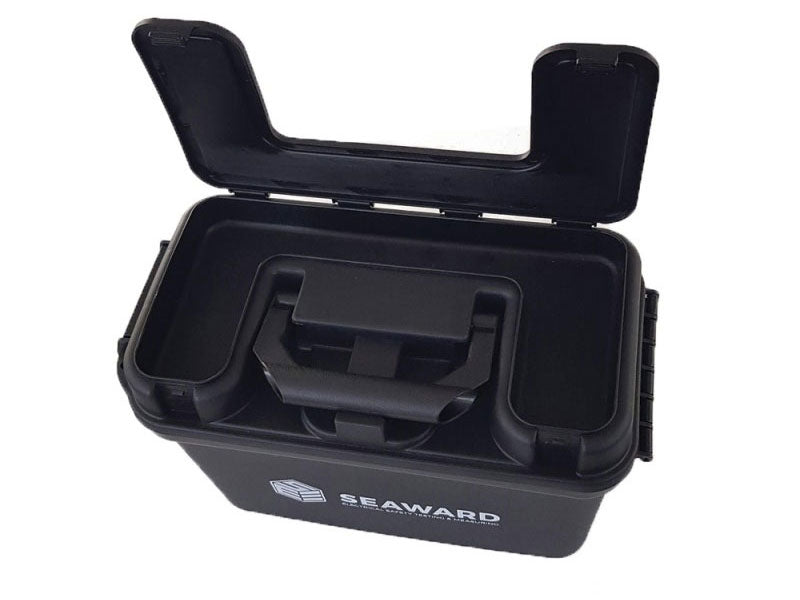

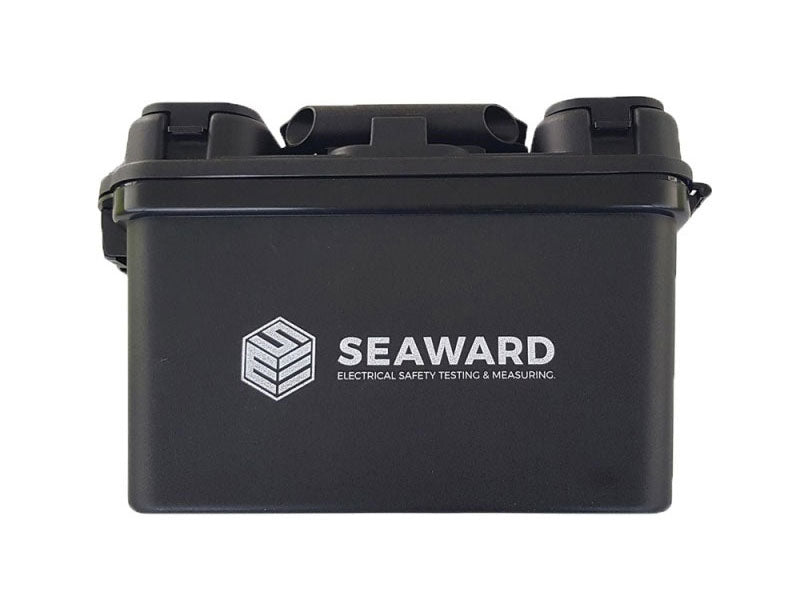

  • Professional carry case
  • Mains lead
  • 1.2M black test lead
  • 1.2M red test lead & 1.2M green test lead
  • Black crocodile clip
  • Red crocodile clip & Green crocodile clip
  • Remote probe with test buttons
  • 6 x MN1500 (LR6) (AA) 1.5v batteries
  • Spare 1.6A 1000v HRC FF fuse
  • User manual

Key Features

  • Voltage measurement up to 440V
  • Continuity test with autostart and null facility to zero out lead resistance
  • Insulation resistance measurement with 250, 500 & 1000V test voltages
  • RCD testing: Trip time, trip current (0.5, 1, 2 and 5 times the rating, dependent on device), auto test and ramp test
  • Test RCDs in auto mode and simply recall the test results once finished
  • Loop impedance and PSC or PFC readings can be shown on one screen
  • Loop impedance - high current with auto start and direct readout of PSC
  • Phase rotation test will indicate the correct phase sequence
  • Integrated socket probe for easier testing

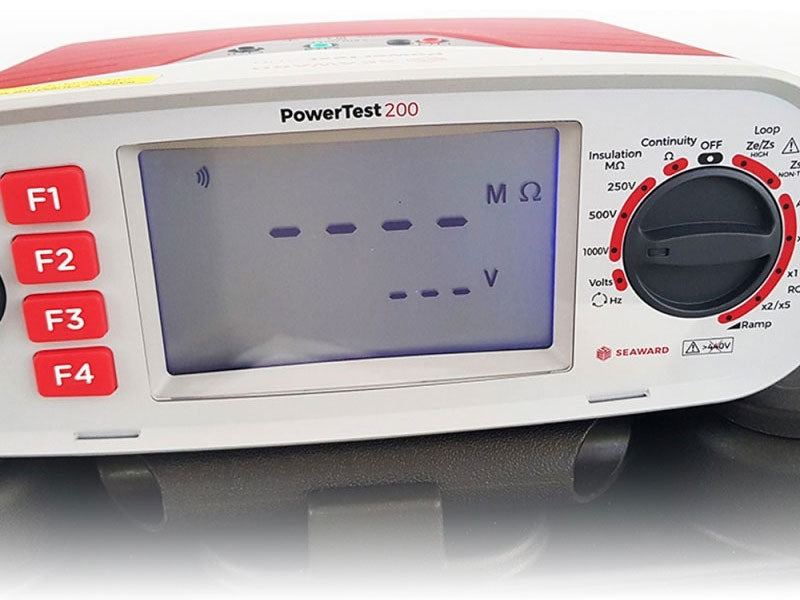

  • Large backlight screen improving visibility even in difficult lighting conditions

Specifications

Warranty: 12 months
Voltage Range - 0V to 440V
Accuracy - +/- 5% +/- 2digits from 0 to 100Hz
Resolution - 1V
Continuity Range - 0.01Ω to 200Ω
Accuracy - +/-2% +/-5 digits
Resolution - 0.01Ω to 1.99Ω 2.0Ω to 19.9Ω 20Ω to 200Ω
Insulation Test Voltage - 250V/ 500V/ 1000V
Range - 0.05MΩ to 200MΩ
Accuracy - +/-5 % +/-5 digits
Resolution - 0.01MΩ to 19.9MΩ 2.0MΩ to 19.9MΩ 20MΩ to 200MΩ
Test Current - 1mA
Compliance - IEC1557-2 IEC1557-10
RCD Trip Time Test Range - 0ms to 2000ms
Accuracy - +/-5% +/-2 digits
View full details
Seaward PowerTest 200
Product Image
$1,079.00
$1,099.00 $1,079.00
(incl. GST)
Product Image
Seaward PowerTest 200
$1,079.00
$1,099.00 $1,079.00
(incl. GST)

Frequently Asked Questions

What tests can the Seaward PowerTest 200 perform?

The Seaward PowerTest 200 can perform insulation resistance, continuity, RCD testing (including auto RCD), loop and line impedance, and voltage measurements. It's a true all-in-one multifunction tester designed for electrical installation testing.

Is the Seaward PowerTest 200 suitable for beginners?

Yes, the PowerTest 200 is ideal for both experienced electricians and those new to installation testing. It features a user-friendly interface and intuitive controls while still offering advanced features for professionals.

Does the PowerTest 200 have safety features?

Absolutely. It includes Seaward's safety lockout system that protects the tester from accidental damage if it's connected to a live circuit on the wrong setting. It's also compliant with AS/NZS3017 safety standards.

Can I perform loop impedance testing without tripping RCDs?

Yes. The PowerTest 200 includes Seaward's patented 'no-trip' loop impedance testing, allowing you to safely test circuits without triggering RCDs.

How portable is the PowerTest 200?

Weighing only around 836 grams, the PowerTest 200 is lightweight and compact (260 × 55 × 105 mm), making it easy to carry on-site or store in a tool bag.
