Trisan S8

Trisan S8

Trisan

In stock

IN STOCK

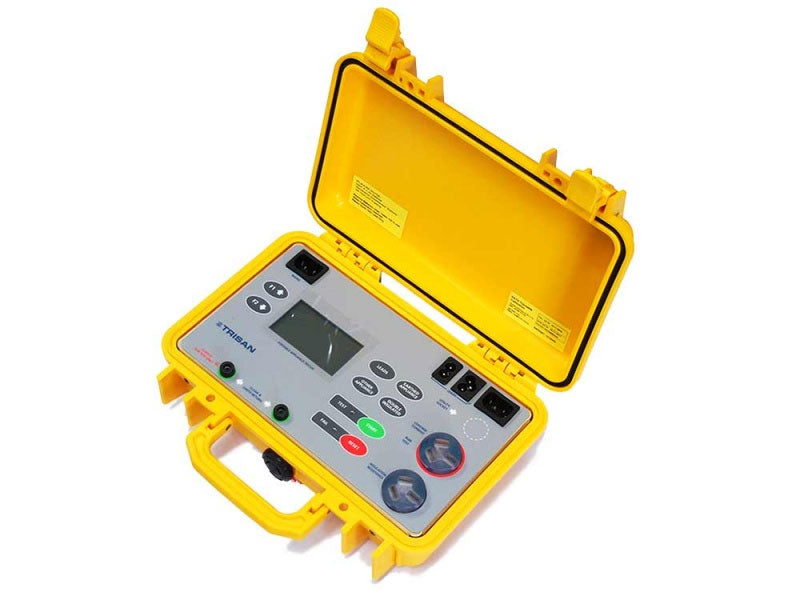

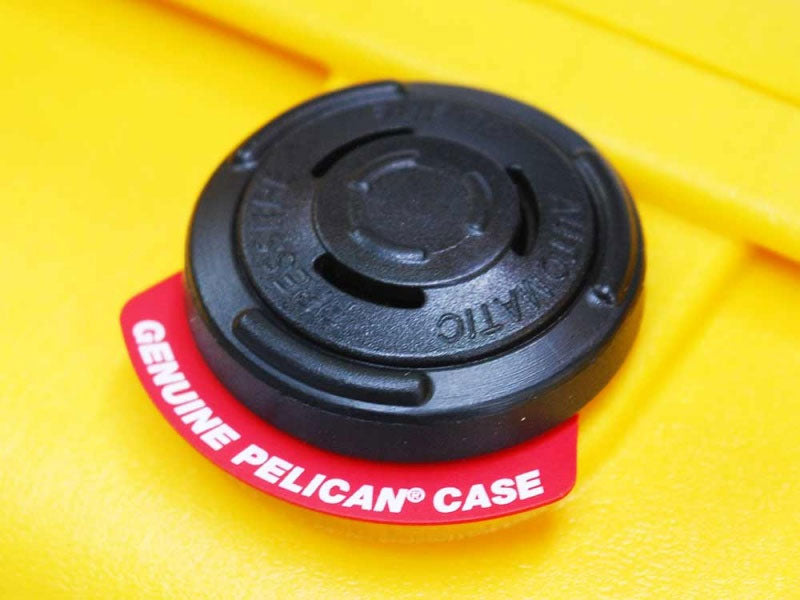

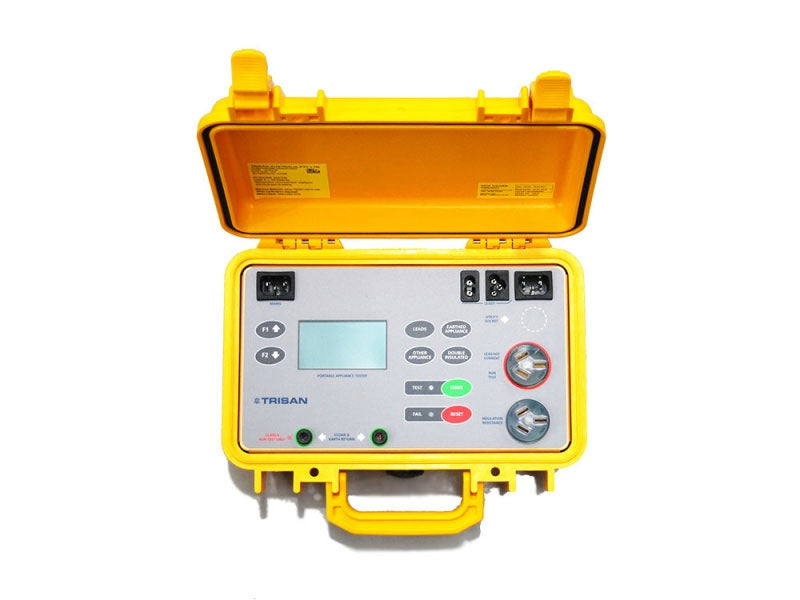

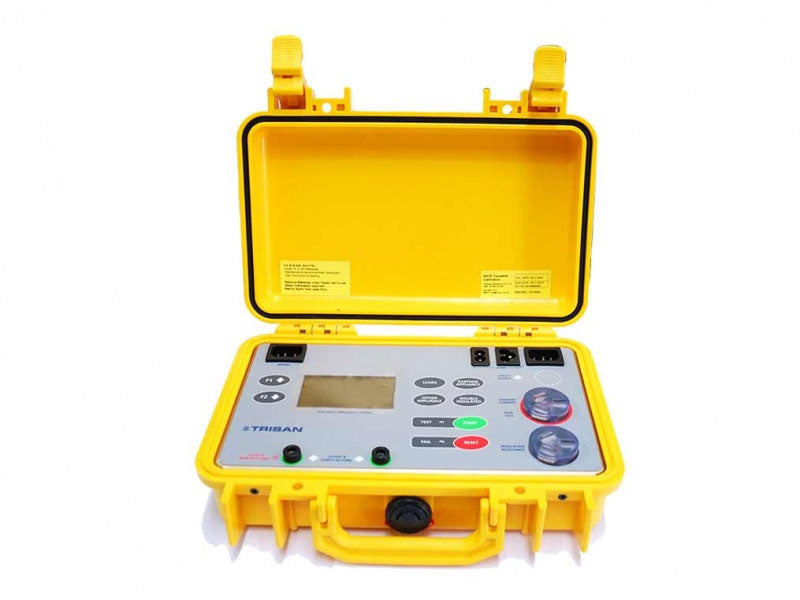

Housed in a rugged Pelican-style hard case, the Trisan S8 is built to withstand on-site conditions, transport, and heavy use - making it ideal for contractors and technicians who can't afford downtime.

With its simple push-button operation, the Trisan S8 PAT provides straightforward, reliable performance that helps you get the job done efficiently and in full compliance with AS/NZS 3760.

$1,089.00
$1,089.00
(incl. GST)
% OFF Sold out
FREE Australia-wide DeliveryFREE Express Shipping Money-Back Guarantee14-day Returns
Same Day DispatchSame Day Dispatch Lifetime Technical SupportLifetime Support
Have a question?Have a question? Call 1300 656 938 or email us

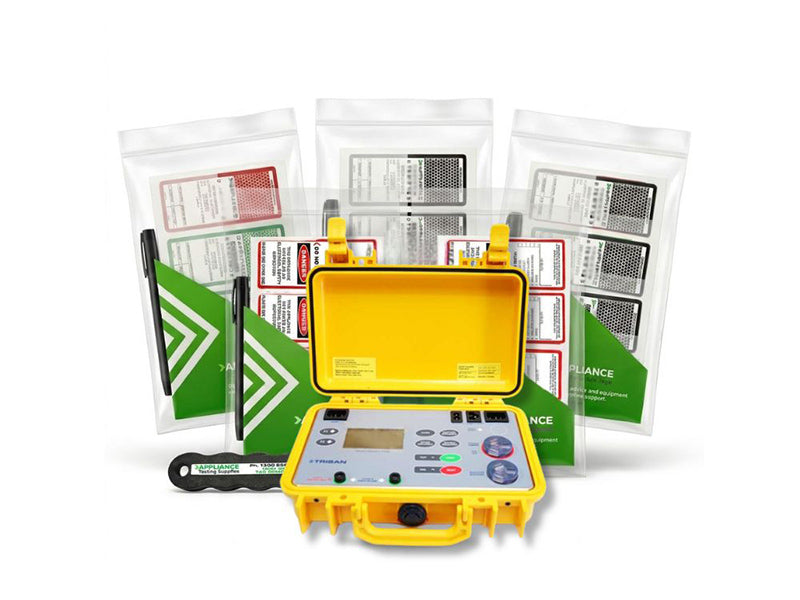

What's Included

  • Earth Test Lead
  • Clamp
  • Mains Lead Adaptor
  • Calibration Certificate

Key Features

  • Battery or Mains Powered – flexibility for testing in any location
  • Pre-programmed Test Sequences – quick setup for each test
  • Clear PASS/FAIL Indicators – easy-to-read results
  • On-Screen Test Readings – shows test results during operation
  • Built Tough – supplied in a rugged Pelican hard carry case
  • In-built Isolation Transformer- for testing RCD's

Specifications

Earth Continuity: Test Current: 200mA
Accuracy: ± 3%
Test Voltage: 12V Nominal
Insulated Resistance: Test Voltage: 250V and 500V selectable
Test Current: <2mA
Accuracy: ± 3%
Class I Leakage Current: Test Voltage: 100 – 265 VAC, 50/60Hz
Run Test: 10 Amp continuous
Accuracy: ± 5%
Threshold Limit: 5mA
Class II Leakage Current: Test Voltage: 100 – 265 VAC, 50/60Hz
Run Test: 10 Amp continuous
Accuracy: ± 5%
Threshold Limit: 1mA
RCD Test: Test Voltage: 216—265VAC, 50/60Hz
Accuracy: ± 5%
View full details
Trisan S8
Product Image
$1,089.00
$1,089.00
(incl. GST)
Product Image
Trisan S8
$1,089.00
$1,089.00
(incl. GST)

Frequently Asked Questions

Is the Trisan S8 compliant with Australian Standards?

Yes. The Trisan S8 is fully compliant with AS/NZS 3760, ensuring it meets all legal requirements for electrical safety testing in Australia.

What makes the Trisan S8 suitable for harsh environments?

The tester comes in a rugged Pelican-style hard case, offering maximum protection against knocks, dust, and rough handling on-site or during transport.

How easy is the Trisan S8 to operate?

The S8 uses simple push-button operation, making it straightforward for both new and experienced testers. There's no unnecessary complexity - just reliable, fast testing.

Who is the Trisan S8 best suited for?

It's ideal for contractors, electricians, and safety officers who want a durable, easy-to-use tester for everyday compliance work without advanced or costly features they don't need.

Does the S8 store test data or connect to software?

No – the Trisan S8 is designed as a straightforward, manual tester. Results are typically recorded in a logbook or with software separately, making it best for users who prefer a simple, rugged device over advanced connectivity. The model above this one - the Trisan S8 DL, is in fact capable of storing results.
