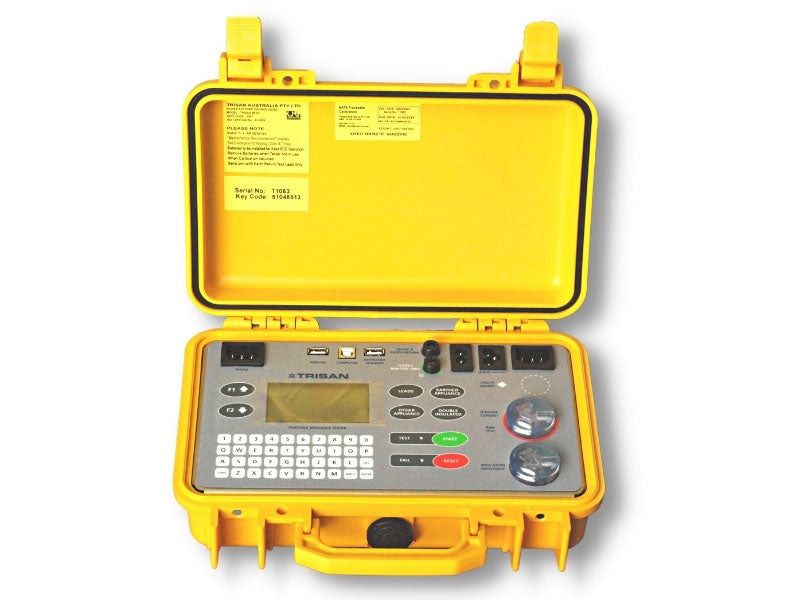

Trisan S8 DL

Trisan S8 DL

Trisan

In stock

IN STOCK

The Trisan S8 DL builds on the durability of the standard S8, adding the convenience of internal memory with PC download capability, which makes recording and managing test data far easier, giving you a more streamlined workflow and reliable record-keeping.

With its combination of rugged build quality, simple push-button operation, and downloadable data storage, the S8 DL is housed in a heavy-duty protective case and can run on both battery and mains power, making it ideal for use in workshops, on-site, or wherever flexibility is required.

$1,685.00
$1,685.00
(incl. GST)
% OFF Sold out
FREE Australia-wide DeliveryFREE Express Shipping Money-Back Guarantee14-day Returns
Same Day DispatchSame Day Dispatch Lifetime Technical SupportLifetime Support
Have a question?Have a question? Call 1300 656 938 or email us

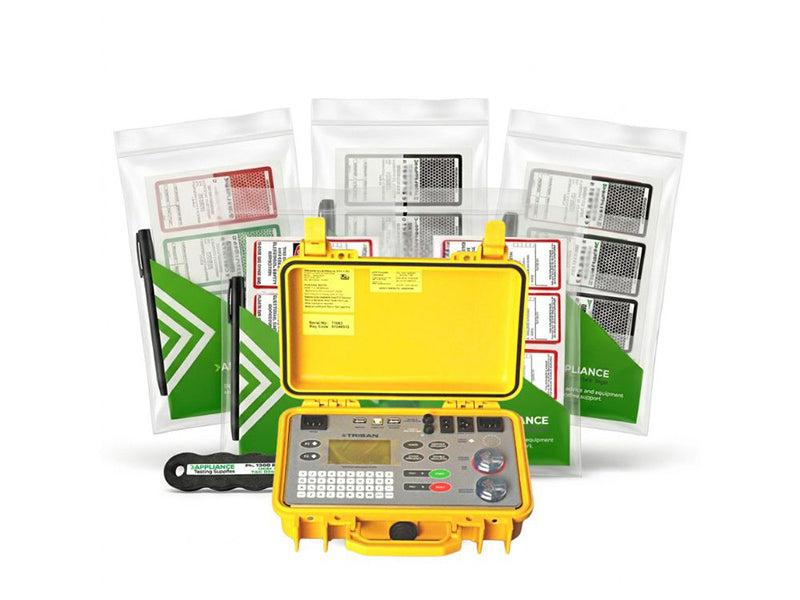

What's Included

  • Earth Test Lead
  • Clamp
  • Mains Lead Adaptor
  • Calibration Certificate

Key Features

  • Rugged Pelican Hard Carry Case – durable protection for your tester
  • Large Internal Memory – stores up to 2000 test records
  • PC Download Capability – easily transfer data for record keeping
  • Battery or Mains Powered – flexibility for use anywhere
  • Pre-programmed Test Sequences – simplifies testing setup
  • PASS/FAIL Indicators – quick and easy results at a glance
  • On-Screen Test Results – view readings instantly during operation
  • Fully Complies with Australian Standards – ensures testing accuracy and compliance

Specifications

Earth Continuity: Test Current: 200mA
Accuracy: ± 5%
Test Voltage: 12V Nominal
Insulated Resistance: Test Voltage: 250V and 500V selectable
Test Current: <2mA
Accuracy: ± 3%
Class I Leakage Current: Test Voltage: 100 – 265 VAC, 50/60Hz
Run Test: 10 Amp continuous
Accuracy: ± 5%
Threshold Limit: 5mA
Class II Leakage Current: Test Voltage: 100 – 265 VAC, 50/60Hz
Run Test: 10 Amp continuous
Accuracy: ± 5%
Threshold Limit: 1mA
RCD Test: Test Voltage: 216—265VAC, 50/60Hz
Accuracy: ± 5%
View full details
Trisan S8 DL
Product Image
$1,685.00
$1,685.00
(incl. GST)
Product Image
Trisan S8 DL
$1,685.00
$1,685.00
(incl. GST)

Frequently Asked Questions

What is the main difference between the Trisan S8 and S8 DL?

The S8 DL includes internal memory and PC download capability, allowing you to store test results and transfer them directly to your computer for easier record keeping. The standard S8 does not have this feature.

How does the data download work?

Test results are saved in the unit's internal memory and can be transferred via a PC connection, eliminating the need for manual logging and providing more accurate record-keeping.

How many results can the S8 DL store?

The S8 DL has sufficient internal memory to handle regular testing workflows. Storage capacity is designed to support multiple test sessions before requiring a download, making it practical for busy contractors and compliance teams.

Does the S8 DL still offer battery and mains operation?

Yes. Just like the standard S8, the DL version can run on both battery and mains power, giving you the flexibility to test in the field or in the workshop without interruptions.

Who should choose the S8 DL over the standard S8?

The S8 DL is ideal for testers who want greater efficiency in data recording. If you're handling higher testing volumes, need to reduce paperwork, or require more formal reporting for compliance purposes, the DL version is the smarter choice.
