Wavecom TnP-500

Wavecom TnP-500

Wavecom | SKU: WCMTNP-500
In stock

IN STOCK

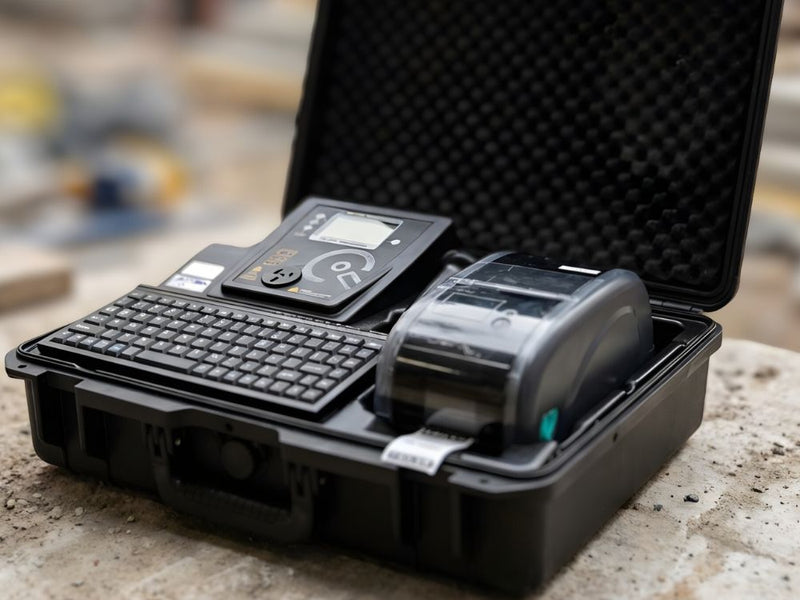

The Wavecom TnP-500 is a rugged, all-in-one PAT testing system designed for high-volume testing across large facilities and multiple sites.

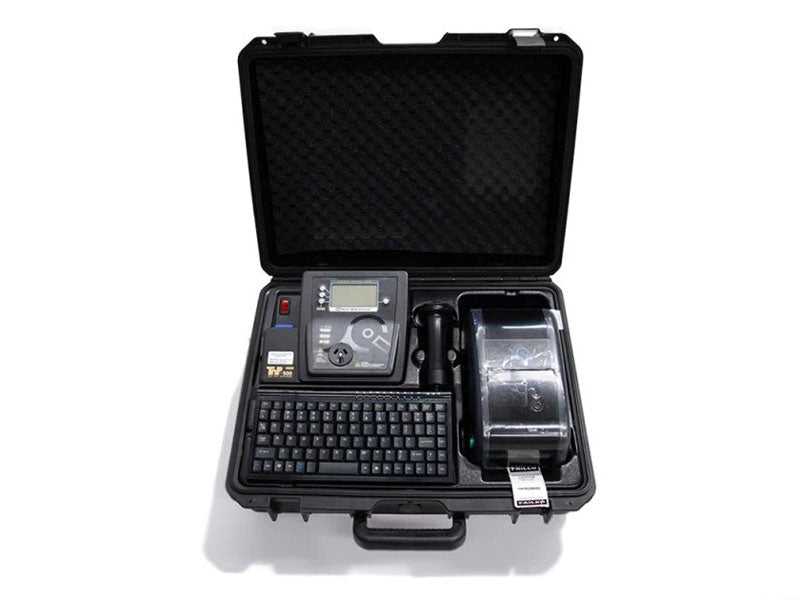

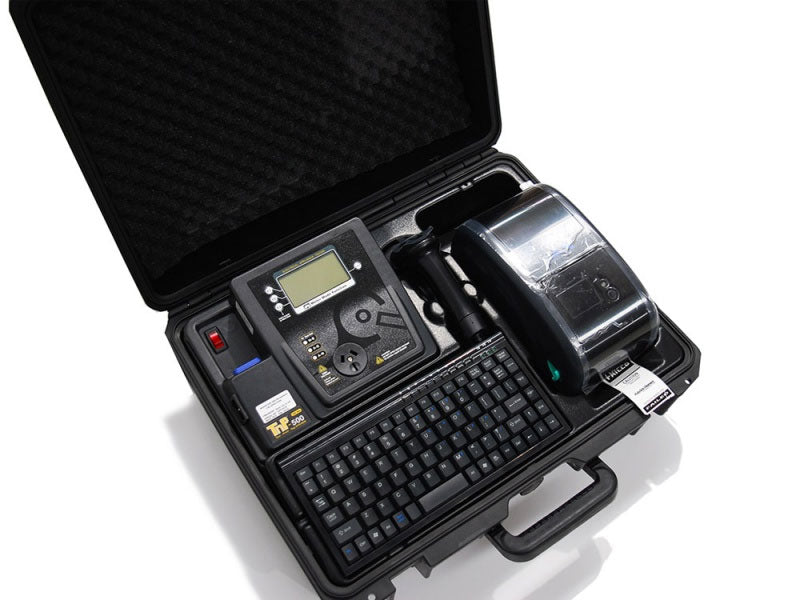

Housed in a durable carry case, it integrates everything you need - appliance tester, printer, scanner, keyboard, and software - so you can test, tag, and manage compliance without extra accessories.

Built to save time and streamline your workflow, the TnP-500 lets you print compliant tags onsite, scan assets for fast re-tests, and store up to 5,000 test results.

$3,627.80
$3,627.80
(incl. GST)
% OFF Contact Us to Order
Taxes included.
FREE Australia-wide DeliveryFREE Express Shipping Money-Back Guarantee30-day Returns
Same Day DispatchSame Day Dispatch Lifetime Technical SupportLifetime Support
Have a question?Have a question? Call 1300 656 938 or email us

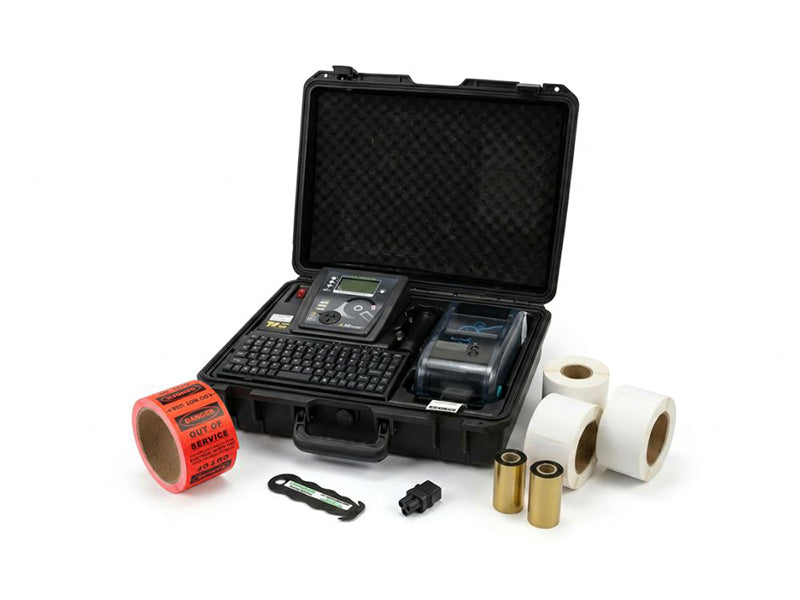

What's Included

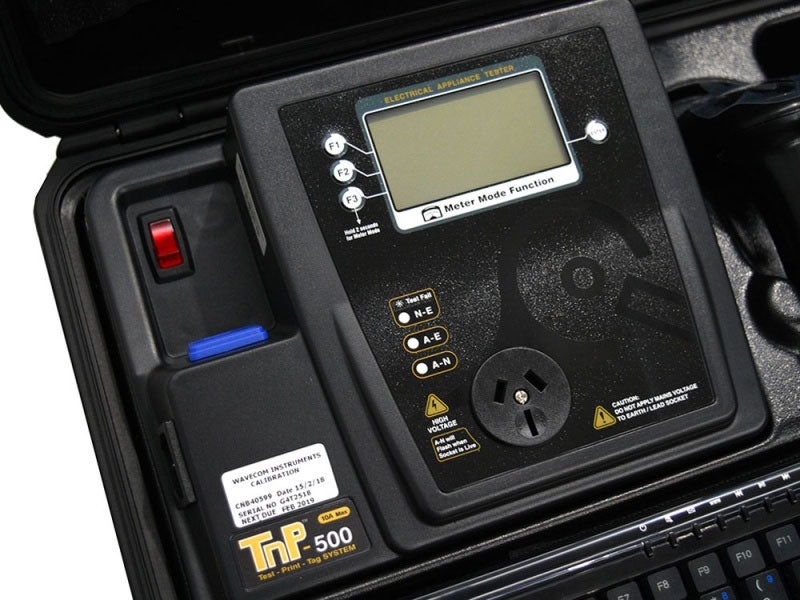

  • Wavecom TnP-500 Appliance Tester - with built-in isolation transformer
  • WinPATs App Lite Cloud (12-month subscription) - for reporting
  • Thermal Printer - prints tags on the spot
  • Barcode Scanner - for quick re-testing and asset lookup
  • QWERTY Keyboard - for easy on-site data entry

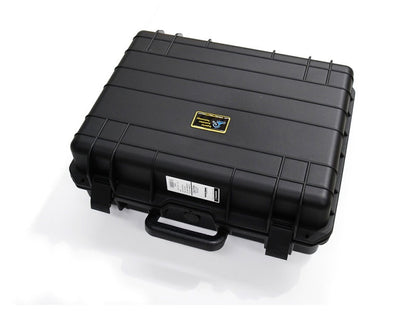

  • Heavy Duty Carry Case - rugged and portable
  • 1x FREE Roll of Printable Tags - 500 tag pack included
  • 1x FREE Roll of Thermal Ribbon - compatible with printer

Also included:

  • 240V Extension Lead Adaptor
  • Earth Bond Lead
  • Calibration Certificate
  • User Manual

Key Features

  • Fully Integrated Test & Print System – streamline the entire testing process from start to finish
  • Professional On-the-Spot Tag Printing – includes thermal printer for instant label creation
  • Barcode Scanning for Fast Re-Testing – quickly recall previous records without manual entry
  • Built-In Isolation Transformer – safely perform RCD testing without extra equipment
  • WinPATs App Lite Cloud – manage assets, generate reports, and automate retest schedules
  • Large Display with 1-Button Operation – clear visuals and simple test execution
  • 5000-Item Memory – perfect for high-volume testing or multi-site use

Specifications

Warranty: 3 Years
Item Storage: 5000 items
Weight: 1.3kg
Size: 170W X 225L X 110H
Case: Impact Resistant, Flame Retardant
Insulation Test: 500v, 250V Selectable
Earth Bond: Current 200mA DC
Pass Limit < 1.0Ω
RCD Testing: Settable Trip, 2 - 500 MA ± <2.5% Of Valve
Trip Time, 0 - 300 MS ± <1 MS
Meter Mode: Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Apparent Power: 0 To 2400VA
Power: 0 To 2400W
Power Measurement: Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Earth Leakage: Class 1 Pass ≤ 5 MA RMS
Class 2 Pass ≤ 1 MA RMS
Input: 230 VAC - 260 VAC. 3W. 50hZ
Power Test: Load Current Max, 10A
Lead Continuity: Circuit Continuity Test 240VAC @ 2mA
Safety: CAT III 300V
Internal Fuse Protected 1A
DUT Test Protected At 10A
View full details
Wavecom TnP-500
Product Image
$3,627.80
$3,627.80
(incl. GST)
Product Image
Wavecom TnP-500
$3,627.80
$3,627.80
(incl. GST)
Trustpilot

Frequently Asked Questions

What does the TnP-500 include?

The TnP-500 comes as a fully integrated system, featuring an appliance tester, printer, scanner, keyboard, and WinPATs Premium software, all built into one rugged carry case.

How many test results can it store?

The unit can store up to 5,000 test records, which can be quickly downloaded to your PC for compliance reporting.

Does it allow onsite tag printing?

Yes. The built-in thermal printer lets you print durable, compliant test tags instantly, directly after completing each test.

Can I scan assets for faster re-tests?

Absolutely. The included barcode scanner allows quick asset identification, making repeat testing much faster and more accurate.

Does the TnP-500 perform RCD testing?

Yes. It features a built-in isolation transformer, enabling safe and compliant testing of both fixed and portable RCDs without extra accessories.

Who is the TnP-500 best suited for?

It's ideal for high-volume testers, contractors, and organisations managing large facilities or multiple sites, where speed, reliability, and detailed reporting are essential.
