Wavecom TnP Prime

Wavecom TnP Prime

Wavecom | SKU: WCMTNP-PRIME10A
In stock

IN STOCK

The Wavecom TnP Prime is a next-generation test and print kit designed for high-volume professionals.

Powered by a long-life lithium-ion battery, it integrates seamlessly with the WinPATs App and 4G Android tablet for cloud-based asset management, wireless tag printing, and streamlined compliance testing.

$4,837.80
$4,837.80
(incl. GST)
% OFF Contact Us to Order
Taxes included.
Load Capacity
FREE Australia-wide DeliveryFREE Express Shipping Money-Back Guarantee30-day Returns
Same Day DispatchSame Day Dispatch Lifetime Technical SupportLifetime Support
Have a question?Have a question? Call 1300 656 938 or email us

Overview

The TnP Prime Kit takes portable appliance testing to the next level with powerful upgrades.

Instead of a built-in keyboard, it comes with a dedicated 4G Android tablet running the WinPATs App, giving you full remote control of your tester, centralised data collection, and real-time cloud synchronisation across multiple users.

This kit includes a Bluetooth wireless scanner for fast re-testing and a thermal transfer printer for durable tag printing. With the WinPATs system, you can manage assets, generate detailed reports, add company logos, and customise tag data for multiple users.

Compliant with AS/NZS 3760:2022, the TnP Prime performs all required tests - including Class I, Class II, RCD, and leakage testing - with an inbuilt isolation transformer. Powered by a high-capacity lithium-ion battery delivering over 3,000 test cycles per charge, it's built for heavy use across multiple sites.

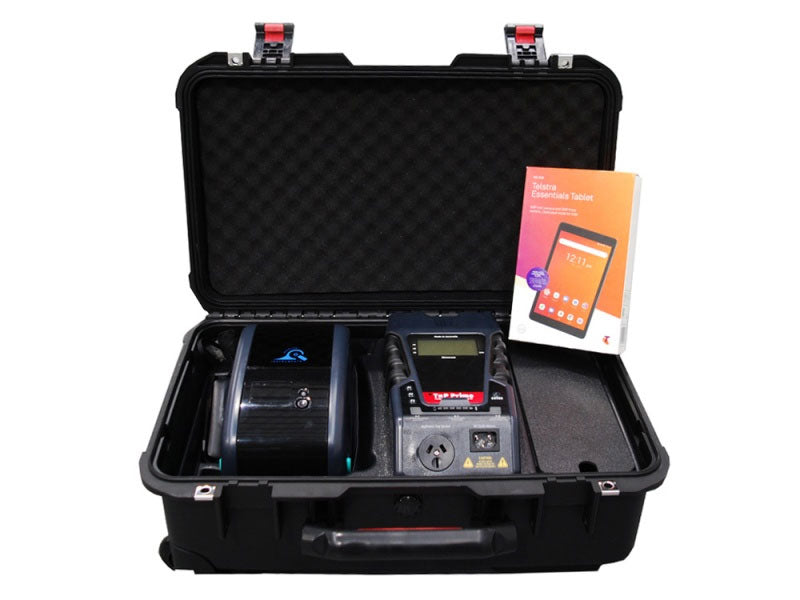

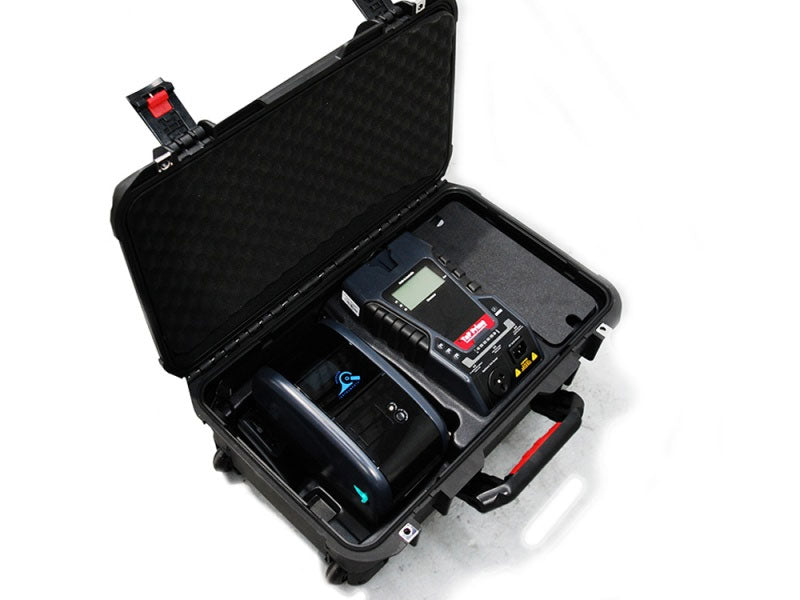

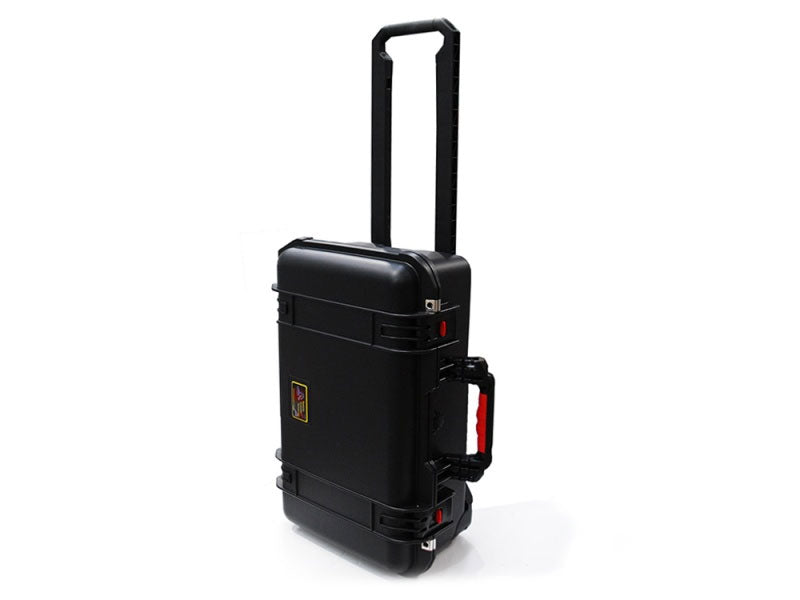

All components are stored in a rugged, wheeled carry case with a pull handle, making it both tough enough for industrial environments and portable for onsite work.

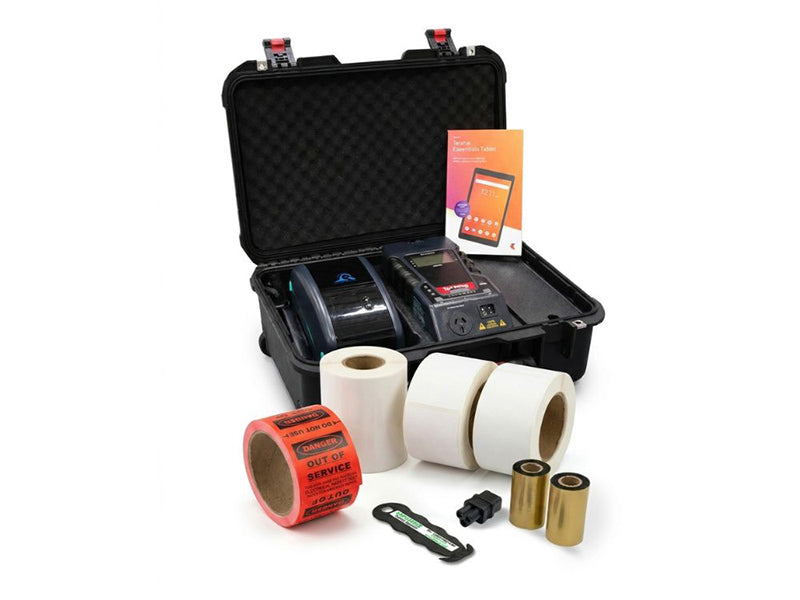

What's Included

  • TNP Prime Intergrated Appliance Tester (with Memory)

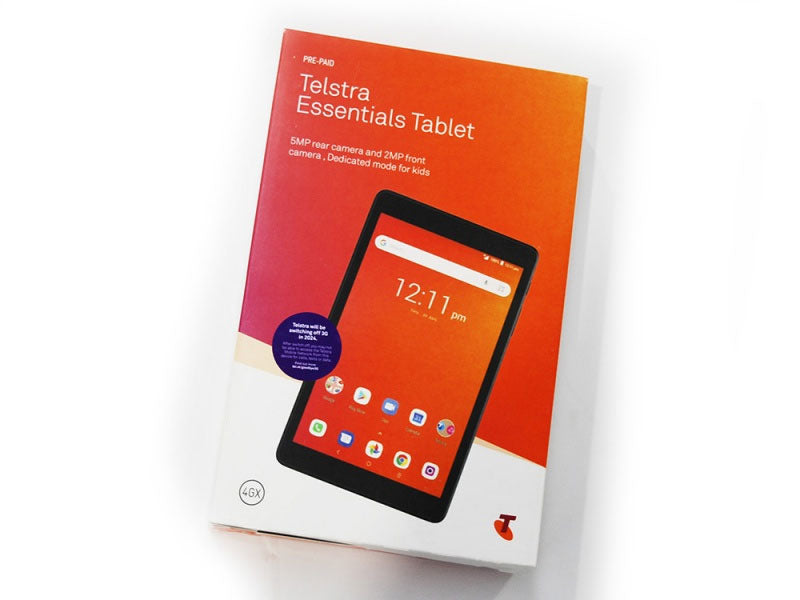

  • 8 Inch 4G Android Tablet
  • WinPATs Premium Software
  • Lithium Ion Battery
  • Bluetooth Laser Scanner
  • Thermal Printer
  • 1 FREE roll of 500 printable tags
  • 1 FREE roll of thermal ribbon
  • Built In Isolation Transformer
  • NEW Heavy Duty Carry Case with Wheels
  • Calibration Certificate
  • User Manual

Key Features

  • Next-Gen Integration - Supplied with a 4G Android tablet running the WinPATs App for full remote control, asset management, and real-time cloud sync.
  • Wireless Efficiency - Includes a Bluetooth scanner for quick re-tests and a thermal transfer printer for instant, durable tag printing.
  • High-Capacity Battery - Lithium-ion power delivers over 3,000 test cycles per charge, ideal for high-volume or multi-site operations.
  • Comprehensive Testing - Performs all tests required by AS/NZS 3760:2022, including Class I, Class II, leakage, and fixed/portable RCDs.
  • Rugged Portability - Supplied in a heavy-duty wheeled case with carry handle, keeping your equipment secure and mobile onsite.

Specifications

Warranty: 3 years
Battery Life: 3000 Tests
Earth Bond: Current 200mA DC
Pass Limit < 1.0Ω
RCD Test: Settable Trip, 2 - 500 MA ± <2.5% Of Valve
Trip Time, 0 - 300 MS ± <1 MS
Meter Mode: Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Apparent Power: 0 To 2400VA
Power: 0 To 2400W
Power Measurement: Voltage: 200 To 265VAC
Load Current: 0.0 To 10Amp
Earth Leakage: Class 1 Pass ≤ 5 MA RMS
Class 2 Pass ≤ 1 MA RMS
Input: 230 VAC - 260 VAC. 3W. 50hZ
Insulation Test: 500V, 250V Selectable
Power Tests: Load Current Max, 10A
Item Storage: 5000 Items
Lead Continuity: Circuit Continuity Test 240VAC @ 2mA
View full details
Wavecom TnP Prime
$4,837.80
$4,837.80
(incl. GST)
Wavecom TnP Prime
$4,837.80
$4,837.80
(incl. GST)

Frequently Asked Questions

What makes the TnP Prime different from other Wavecom kits?

The TnP Prime replaces the built-in keyboard with a dedicated 4G Android tablet running the WinPATs App, giving you full remote control, cloud storage, and multi-user access across different locations.

Does the TnP Prime come with everything I need?

Yes. The kit includes the PAT tester, thermal transfer printer, Bluetooth scanner, and Android tablet, all supplied in a rugged wheeled carry case. It's a complete, ready-to-go solution.

How many tests can it perform on one charge?

The lithium-ion battery delivers up to 3,000 test cycles per charge, making it ideal for high-volume or multi-site testing.

Is the TnP Prime compliant with AS/NZS 3760:2022?

Yes. It performs all required tests, including Class I, Class II, leakage, and both fixed and portable RCDs, ensuring compliance with the latest standard.

Can I manage test results and reports digitally?

Absolutely. The WinPATs App allows you to store results, generate reports, add company logos, and sync data to the cloud, so records are secure and accessible anywhere in Australia.

Who is the TnP Prime best suited for?

It's designed for professional testers, contractors, and compliance managers who need a fully integrated, cloud-ready test and tag solution for efficiently managing large volumes of appliances.
