Metrel DeltaPAT Starter Kit

Metrel DeltaPAT Starter Kit

Metrel

Low stock

LOW STOCK

If you're just getting started with testing and tagging, this Starter Pack gives you everything you need in one box - no guesswork and no extras to chase down.

One of Australia's best-selling test and tag machines, the trusted DeltaPAT 3309 BT, gives you the flexibility of mains or battery power, RCD testing, Bluetooth connectivity, plus all the essential accessories to help you hit the ground running.

$1,900.00
$2,115.00 $1,900.00
(incl. GST)
10% OFF Sold out
FREE Australia-wide DeliveryFREE Express Shipping Money-Back Guarantee14-day Returns
Same Day DispatchSame Day Dispatch Lifetime Technical SupportLifetime Support
Have a question?Have a question? Call 1300 656 938 or email us

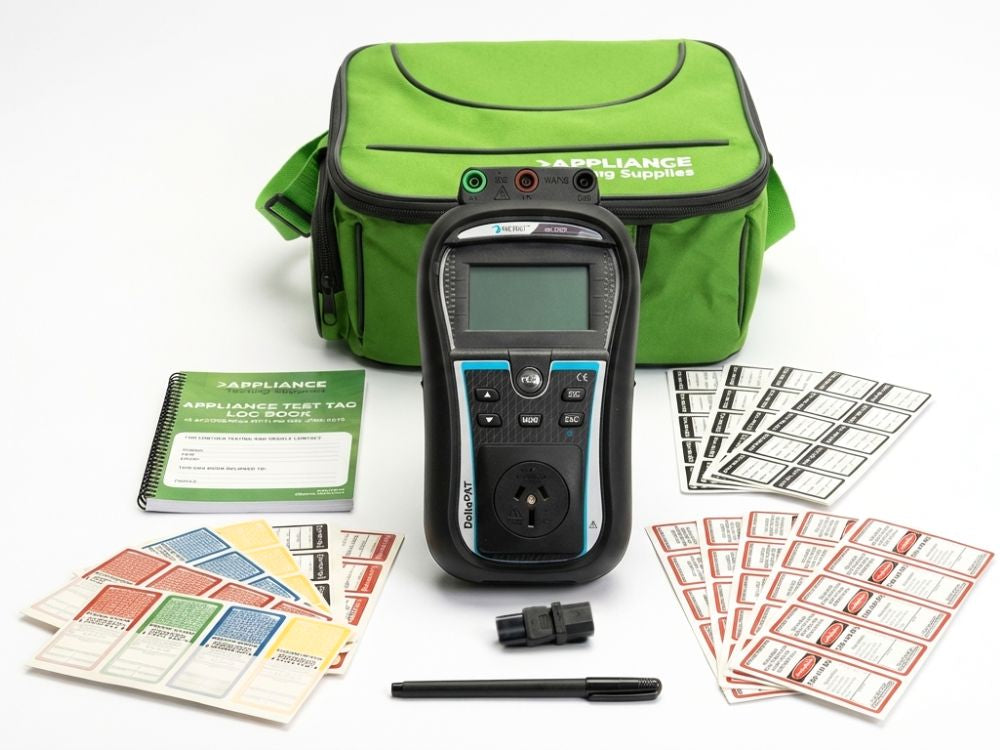

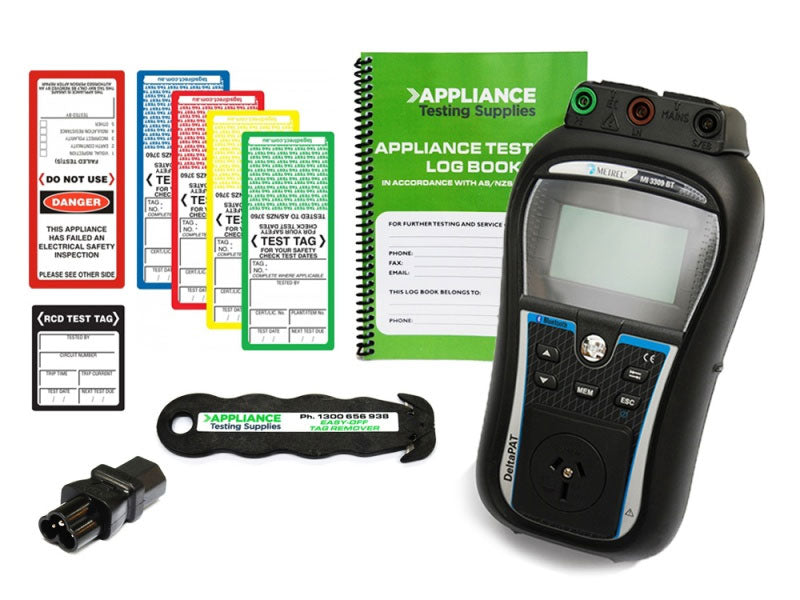

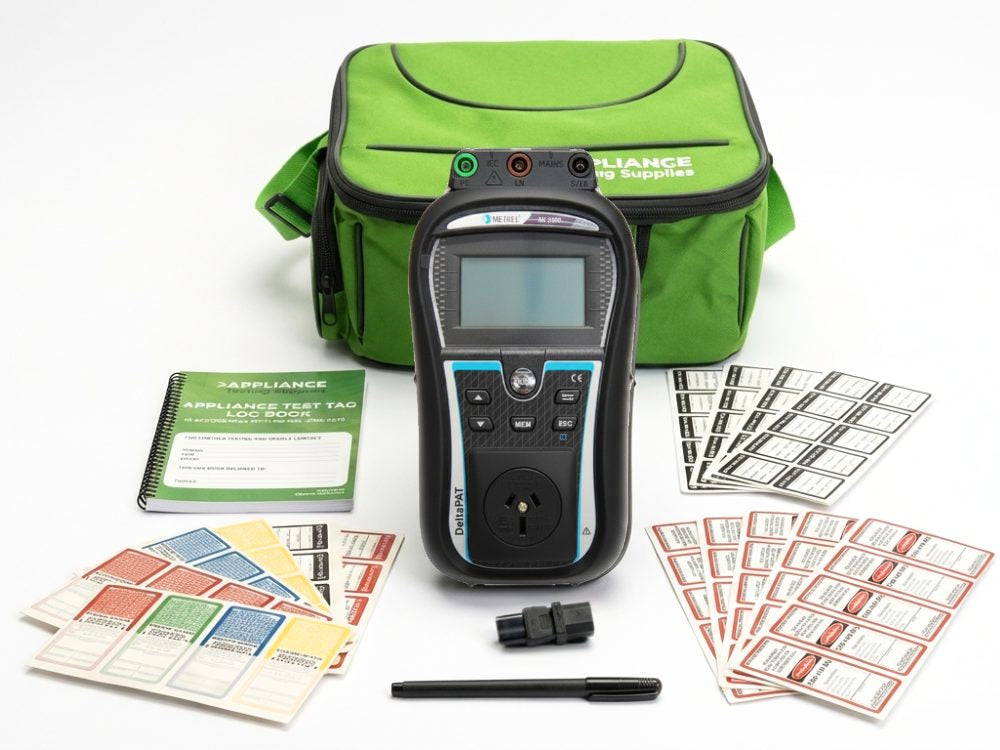

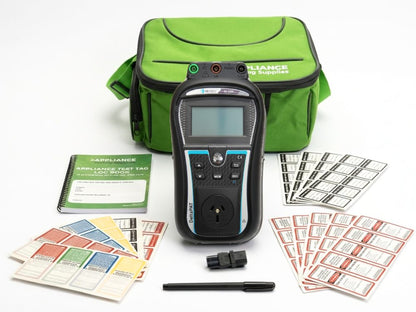

What's Included

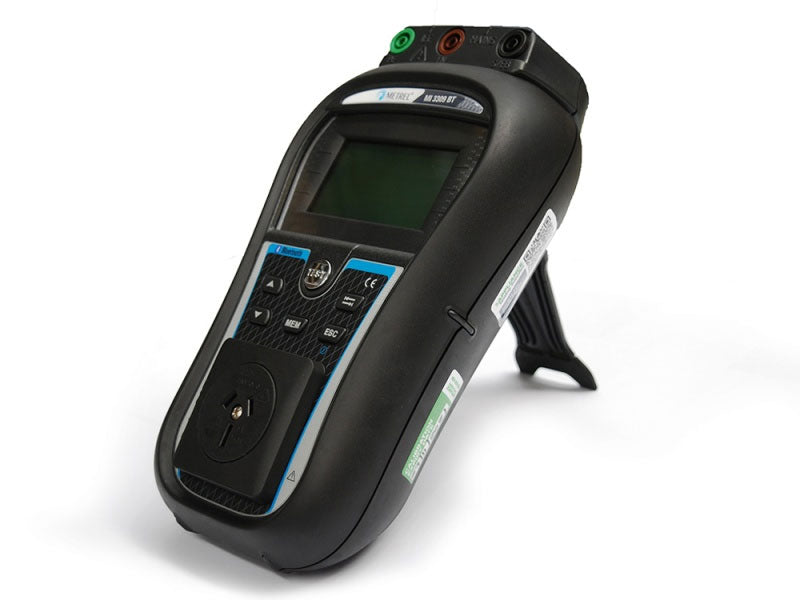

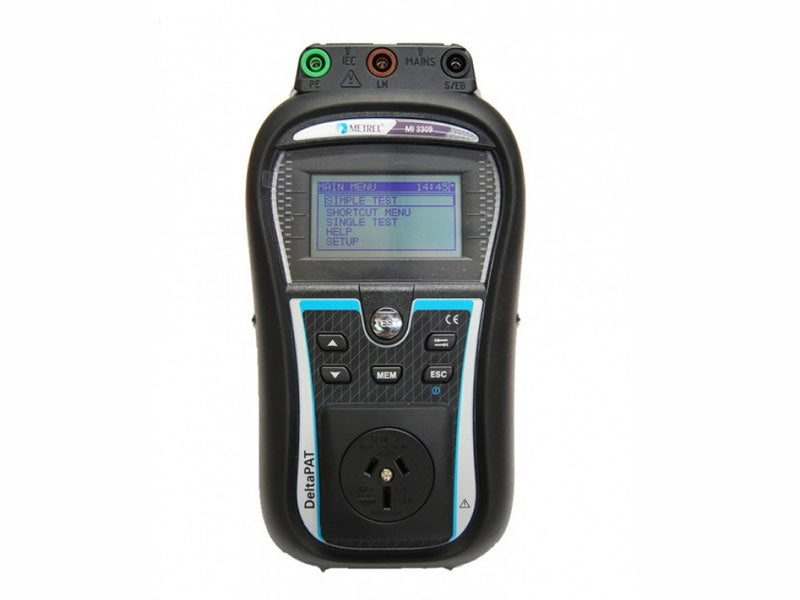

  • Metrel DeltaPAT MI 3309 BT

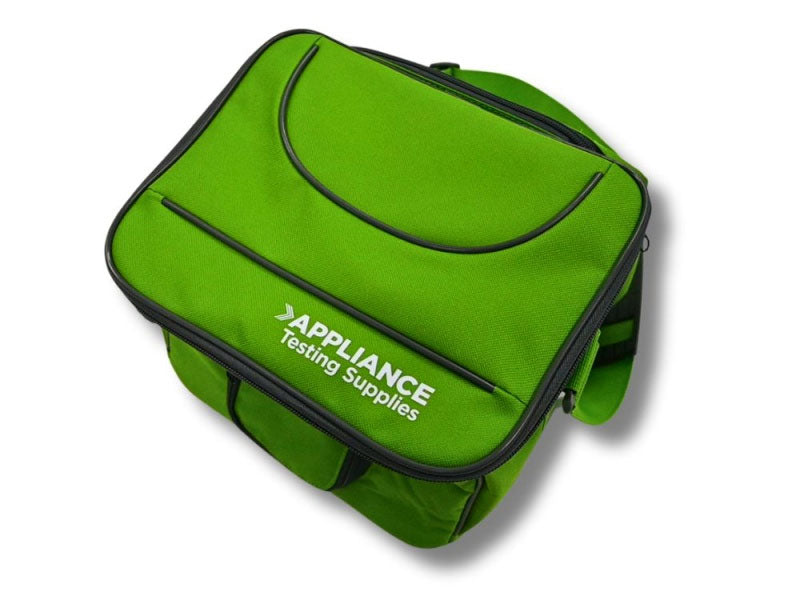

  • Soft Metrel Carry Case

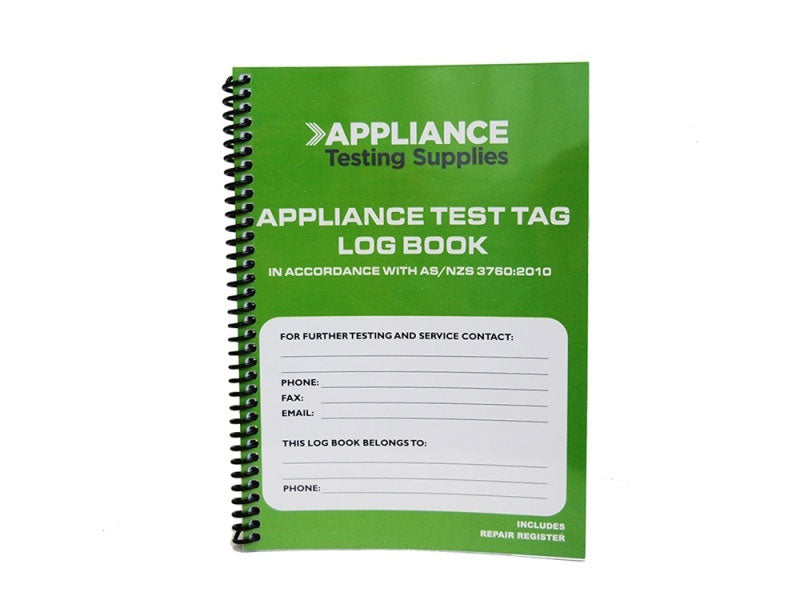

  • Test & Tag Equipment Log Book
  • 100 x Heavy Duty Self-Laminating Tags

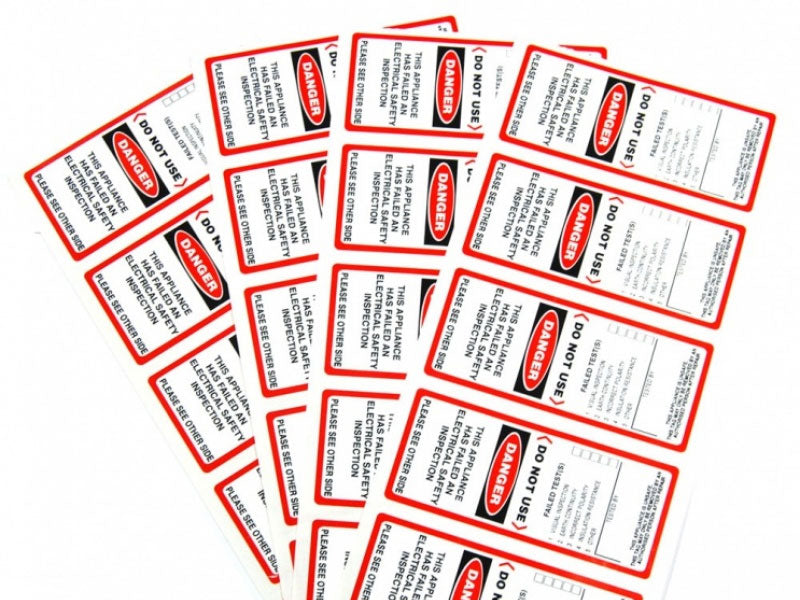

  • 50 x Failed Tags

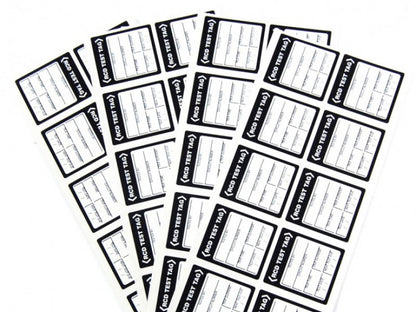

  • 100 x RCD Test Tags
  • IEC Clover Adaptor
  • EasyOff Tag Remover
  • Metrel ES Manager Software
  • Permanent Marker Pen
  • 240V Extension Lead Adaptor
  • Mains & Test Lead
  • Probe & Earth clip
  • USB and RS232 cable

Also includes: User manual, Calibration certificate

Key Features

  • Battery or Mains Powered - excellent portability
  • Tests Portable & Fixed RCDs - no isolation transformer needed
  • Large LCD Display - with clear pass/fail indicator lights
  • Internal Memory - stores up to 1500 test results
  • Bluetooth Ready - connect to compatible Android apps and printers
  • USB & RS232 Export - transfer data to your PC for test report generation
  • Printer Compatible - works with the Godex Bluetooth Printer if you want to upgrade down the track

For more information read the full DeltaPAT 3309 BT review

Specifications

Warranty: 2 Years
Dimensions: 14cm x 8cm x 23cm
Weight: 1.2kg
Operation: 10 h
Power Measurement: Voltage: 230 V AC
Range: 0.00 kVA ÷ 4.00 kVA
RCD Testing: 10mA, 15mA, 30mA
Touch Leakage Current: Voltage: 230 V AC
Range: 0.00 mA ÷ 7.0 mA
Diff. Leakage Current: Voltage: 230 V AC
Range: 0.00 mA ÷ 7.0 mA
Insulation Resistance: Voltage: 250 VDC or 500 VDC
Range: 0.00-199.9 MΩ
Earth Continuity: 200 mA in to 2.00 Ω
Range: 0.00-1999 Ω
Polarity Test: <50 V AC
Voltage TRMS Range: 80 ÷ 300 V
Overvoltage Category: CAT II / 300 V
Protection Degree: case IP 40/connectors IP 20
View full details
Metrel DeltaPAT Starter Kit
Product Image
$1,900.00
$2,115.00 $1,900.00
(incl. GST)
Product Image
Metrel DeltaPAT Starter Kit
$1,900.00
$2,115.00 $1,900.00
(incl. GST)
Trustpilot

Frequently Asked Questions

What types of tests can the DeltaPAT MI 3309 BT perform?

It supports a wide range of tests, including:

  • Earth continuity
  • Insulation resistance (250V and 500V)
  • Leakage current
  • Polarity check
  • Functional testing
  • RCD testing (including PRCD-S and PRCD-K)
  • Voltage measurement
  • Power consumption
  • It complies with AS/NZS 3760 and 3012 standards.

Is the tester battery-powered or mains-powered?

The DeltaPAT 3309 BT operates on both battery and mains power.

It uses six AA NiMH or NiCd rechargeable batteries, providing approximately 8 hours of operation. This dual power option offers flexibility for both on-site and stationary testing scenarios.

Can this tester perform RCD testing without an isolation transformer?

Yes, the DeltaPAT 3309 BT features unique RCD testing technology that eliminates the need for an isolation transformer when testing portable RCDs. This simplifies the testing process and enhances safety.

Is the tester compatible with printers or barcode scanners?

The DeltaPAT 3309 BT includes USB and RS232 communication ports, allowing connection to compatible printers and barcode scanners.

Additionally, with an optional Bluetooth dongle, it can interface with Android devices for enhanced data management.

How many test results can be stored in the device?

The tester has an internal memory capable of storing approximately 1,500 test results.

These results can be exported to a PC using the included PATLink PRO software for reporting and record-keeping.

Does the tester come with a calibration certificate?

Yes, each DeltaPAT 3309 BT unit included in the kit is supplied with a valid calibration certificate, ensuring accuracy and compliance from the outset.

Can I use this kit for commercial testing services?

Absolutely. The DeltaPAT MI 3309 BT is a professional-grade tester ideal for electricians, contractors, and test and tag service providers.

How is the test data managed?

The tester has internal memory to store test results and is bundled with Metrel ES Manager software for downloading, managing, and generating test reports.

Is the tester suitable for testing 3-phase appliances?

The DeltaPAT 3309 BT is primarily designed for single-phase appliance testing. For 3-phase equipment, additional accessories or alternative models may be required.

Please contact us for further information.
