AlphaPAT
$17.27 per week*
call our customer service or send us an e-mail.

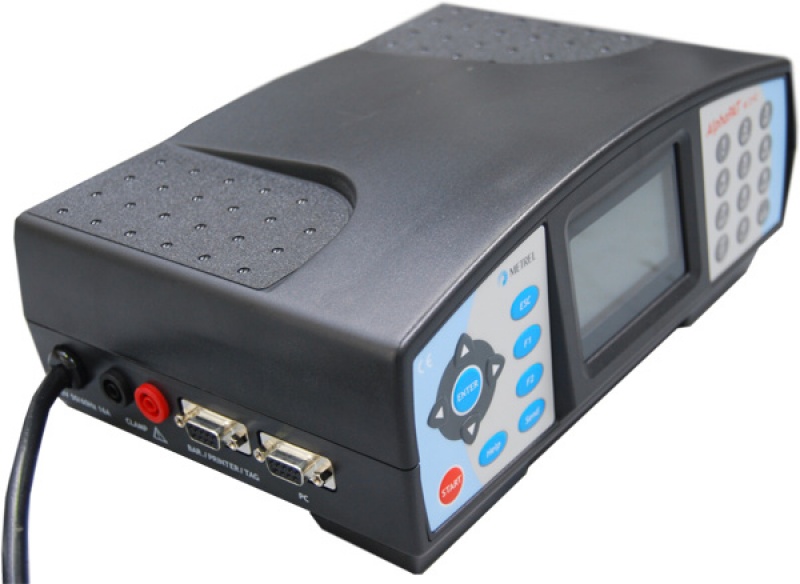

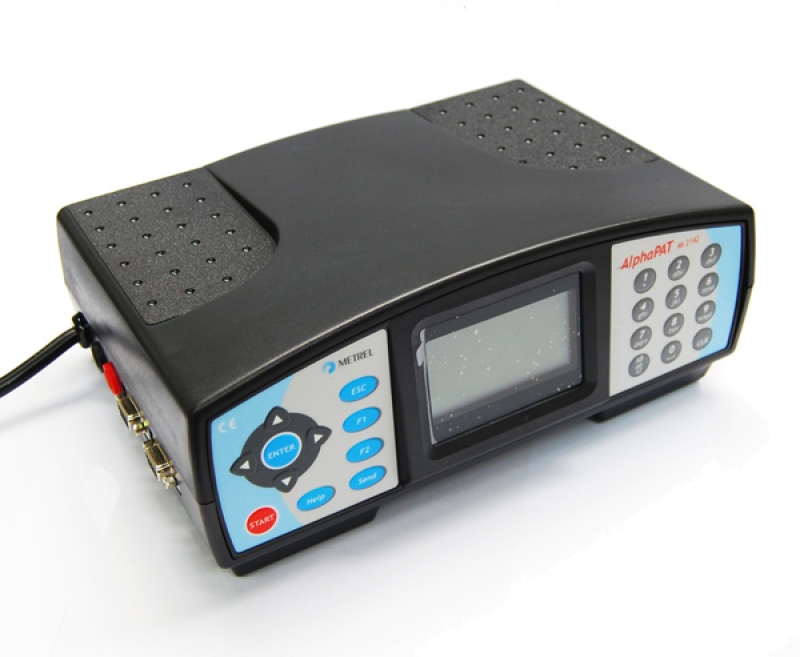

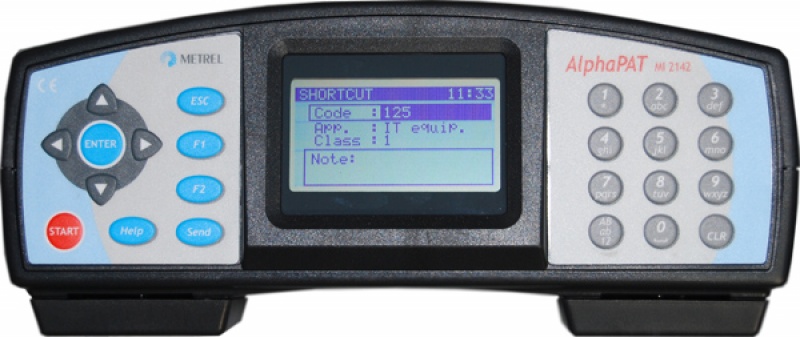

Metrel AlphaPAT MI2142
The Metrel AlphaPAT MI2142 is a very powerful and lightweight portable appliance tester, packed full of features for the Australian and New Zealand Markets.
The AlphaPAT offers additional testing features like substitute leakage current, touch leakage current and low range PE Leakage test that are not required for the Australian Standards
SimplyPATs Version 6 Software can be used with this appliance tester however it is supplied with a basic downloading software.
The AphaPAT is only one of a few testers that can test 3 Phase equipment and uses a Clamp Meter to test 3 Phase at an additional cost ($449.90).

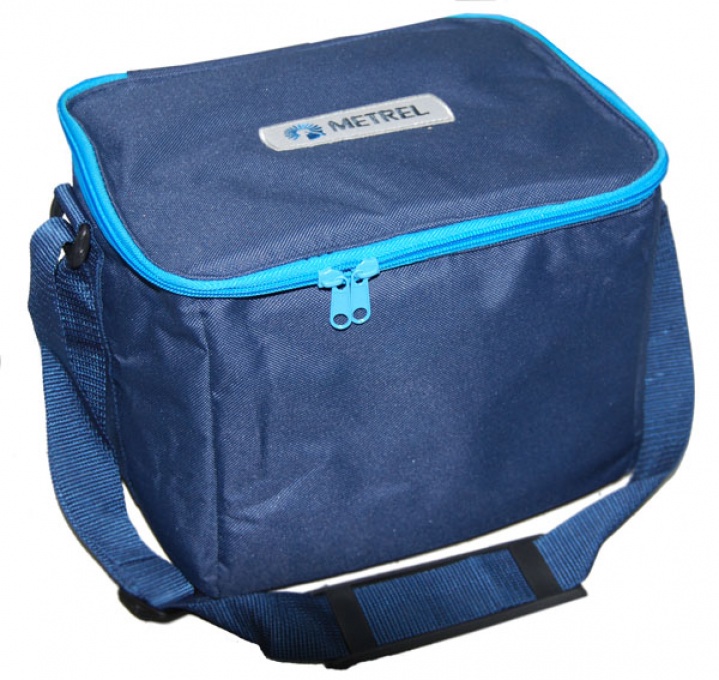

Unit Supplied with: Manual, Carry Case, Earth Bond Lead, Calibration Certificate.
** Power Supply Lead 15 Amp (10 Amp Optional)
-
1 Year
-
4Mbit Data Flash Memory
-
Baud Rate 9600
-
Range: 0.00 to 19.99 @ 10 or 25 A AC
Accuracy: ± 5% + 5 dgt -
Range: 0.00 to 19.99 @ 100mA to 20mA
Accuracy: ± 5% + 5 dgt -
Range: 0.00 to 19.99
Accuracy: ± 5% + 5 dgt -
Range: 0.00 to 19.99mA
Accuracy: ± 5% + 5 dgt -
Range: 0.00 to 19.99A
Accuracy: ± 5% + 3 dgt -
Range: 0.00 to 3.69kVA
-
Open, Short, Crossed @ 50V DC
-
Range: 0.00 to 99.9 mA
Accuracy: ± 10% + 5 dgt
Range: 100 mA to 19.99 A
Accuracy: ± 5%
A full spec sheet is available to download
