The TNP Prime is part of the new generation of Wavecom test and print systems. It comes standard with an Android Tablet and WinPAT’s software which will allow you to set up full cloud communications.
$4,298.00 Excl. GST
1300 656 938
If you have any questions about this product, call our customer service or send us an e-mail.
Product Description

Wavecom TnP Prime

The TNP Prime is part of the new generation of Wavecom test and print kits. The TNP Prime is similar to the previous generation Wavecom models, but it includes a few major upgrades.  It is exclusively powered by a lithium ion battery that will last you over 3,000 tests. The QWERTY keyboard has also been removed, and instead this model comes standard with a 4G Android Tablet, and the new WinPATs App for data collection and remote control of your tester. This kit also includes a wireless Bluetooth scanner for retesting.

The combination of the Android Tablet and the WinPATs App is what really makes this kit unique. These inclusions enable you centralise your data with full cloud synchronisation, which means your data can be accessed by multiple users anywhere in Australia. The WinPATs software will also allow you easily manage your assets, create reports, configure logos for multiple users and print specific test data on your tags.

In terms of testing fuctions, the TNP Prime will conduct all tests required by AS/NZS 3760 Standards, including fixed and portable RCD testing with the inbuilt isolation transformer.

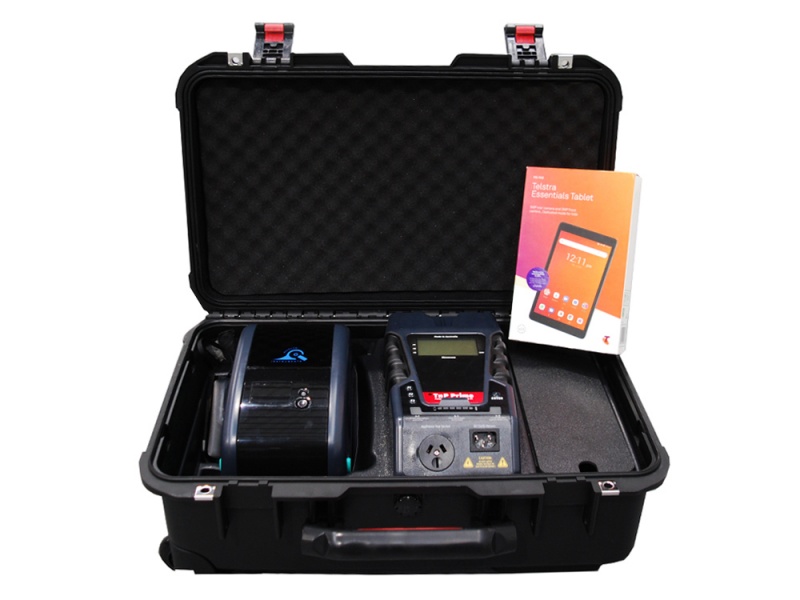

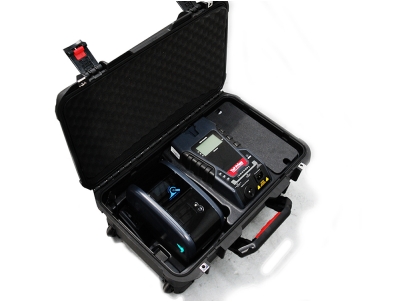

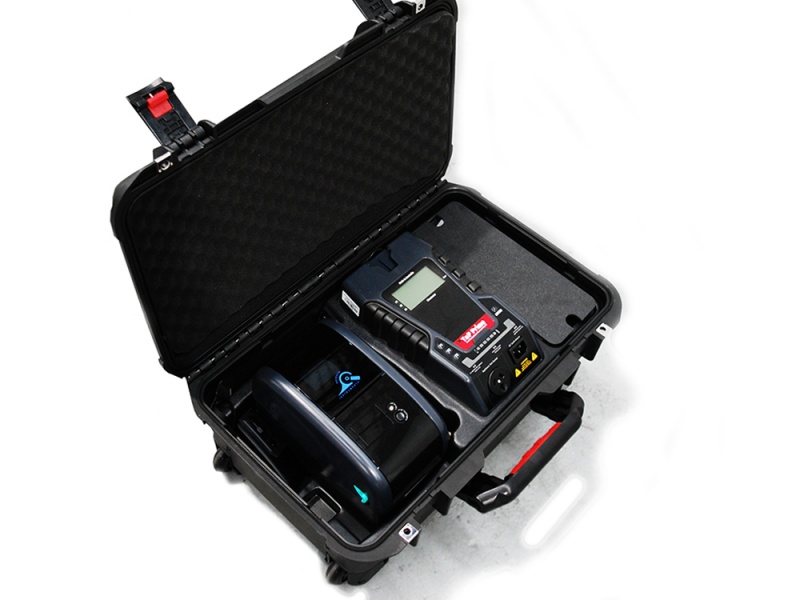

The tester itself and all your other accessories fit perfectly in the custom-made heavy duty carry case. It’s a large, rugged set up, but Wavecom have thought of everything and included wheels and a carry handle, so you’ll be able to move around with ease.

To help get you started, we've included 1 free roll of 500 printable tags and 1 roll of thermal ribbon.
This package is supplied with:

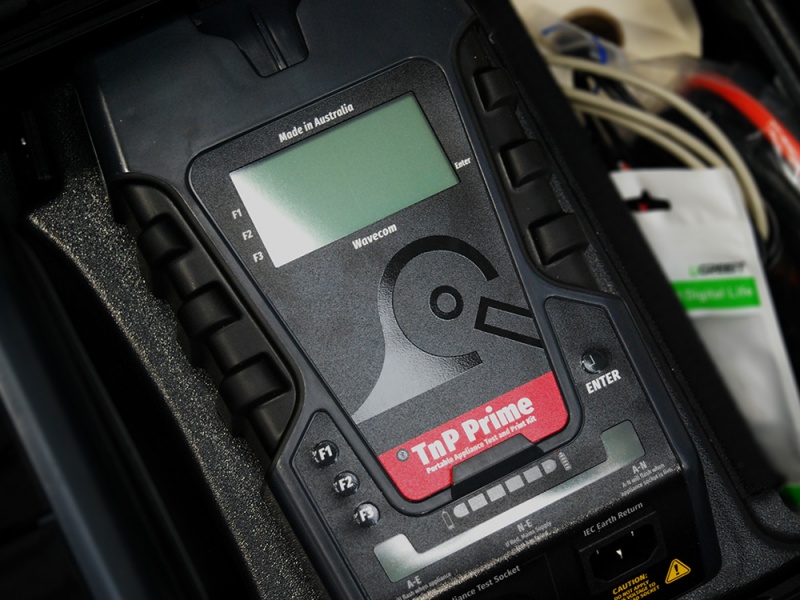

  • TNP Prime Intergrated Appliance Tester (with Memory)

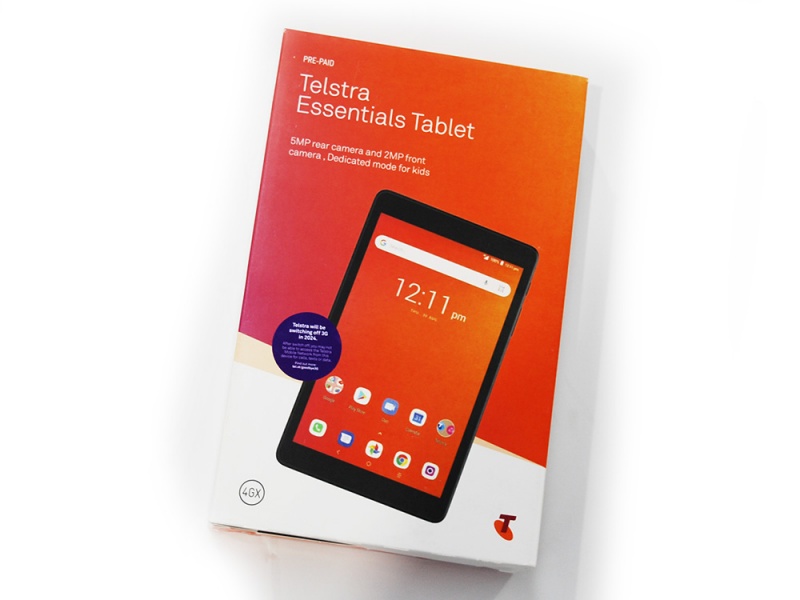

  • 8 Inch 4G Android Tablet
  • WinPATs Premium Software
  • Lithium Ion Battery
  • Bluetooth Laser Scanner
  • Thermal Printer
  • 1 FREE roll of 500 printable tags
  • 1 FREE roll of thermal ribbon
  • Built In Isolation Transformer

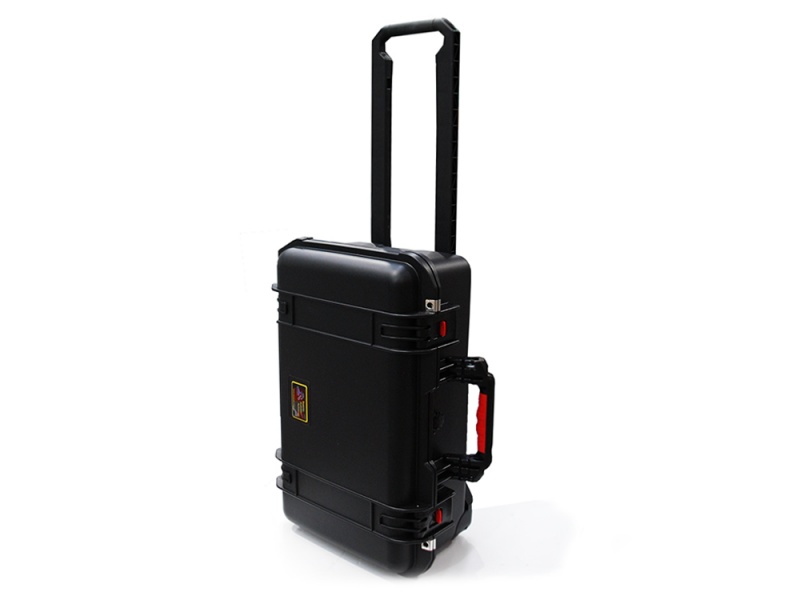

  • NEW Heavy Duty Carry Case with Wheels
  • Calibration Certificate
  • Manual


  • 3000 Tests
  • Current 200mA DC
    Pass Limit < 1.0Ω
  • Settable Trip, 2 - 500 MA ± <2.5% Of Valve
    Trip Time, 0 - 300 MS ± <1 MS
  • Voltage: 200 To 265VAC
    Load Current: 0.0 To 10Amp
    Apparent Power: 0 To 2400VA
    Power: 0 To 2400W
  • Voltage: 200 To 265VAC
    Load Current: 0.0 To 10Amp
  • Class 1 Pass ≤ 5 MA RMS
    Class 2 Pass ≤ 1 MA RMS
  • 230 VAC - 260 VAC. 3W. 50hZ
  • 500V, 250V Selectable
  • Load Current Max, 10A
  • 5000 Items
  • 2 Years
  • Circuit Continuity Test 240VAC @ 2mA

A full spec sheet is available to download
